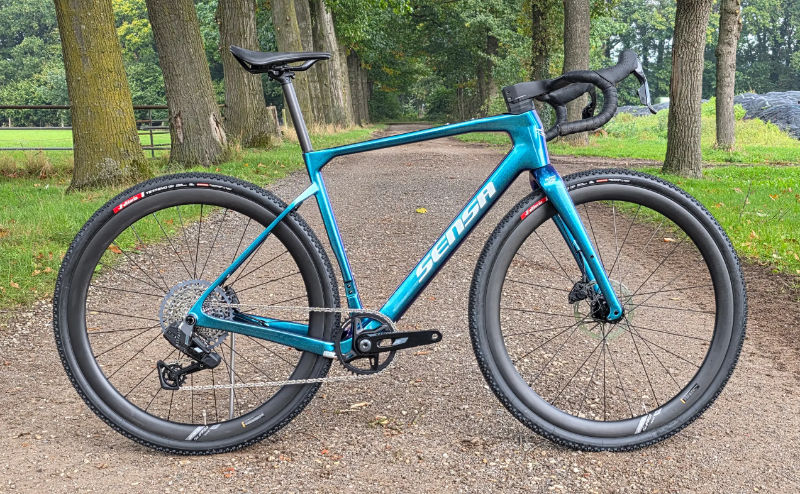

2026 Sensa Giulia Gravel XP geometry
Full frame geometry for the 2026 Sensa Giulia Gravel XP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 546 | 386 | 73.5 | 71.2 | 121 | 548 | 443 | 395 | 1019 | 50 |
| M | 564 | 390 | 73.5 | 71.5 | 139 | 557 | 496 | 395 | 1027 | 50 |
| L | 584 | 401 | 73.5 | 71.8 | 160 | 574 | 547 | 395 | 1041 | 50 |
| XL | 604 | 411 | 73.5 | 72 | 180 | 590 | 568 | 395 | 1055 | 50 |
All measurements in millimetres unless marked (°) for angles.
