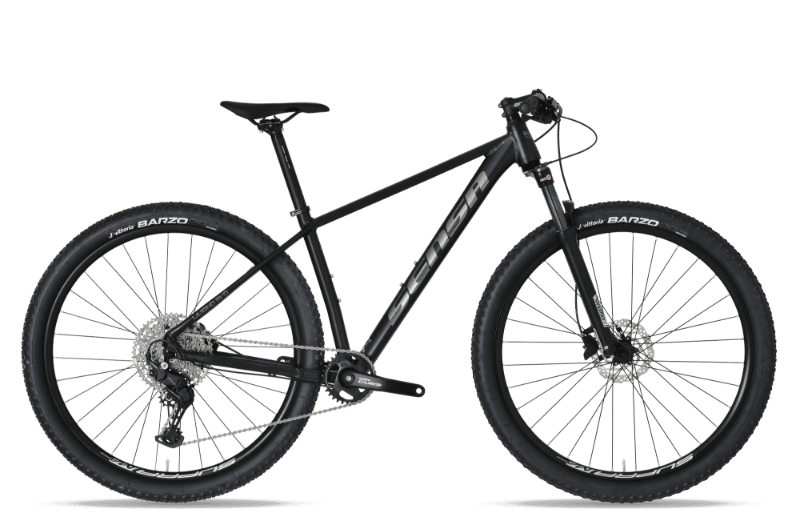

2026 Sensa Livigno Evo geometry
Full frame geometry for the 2026 Sensa Livigno Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 612 | 390 | 73.5 | 69.8 | 95 | 571 | 65 | 440 | 1080 | 51 |
| 17 | 612 | 418 | 73.5 | 69.8 | 95 | 599 | 65 | 440 | 1109 | 51 |
| 19 | 621 | 439 | 73.5 | 69.8 | 105 | 621.5 | 65 | 440 | 1129 | 51 |
| 21 | 640 | 460 | 73.5 | 69.8 | 125 | 649 | 65 | 440 | 1157 | 51 |
All measurements in millimetres unless marked (°) for angles.
