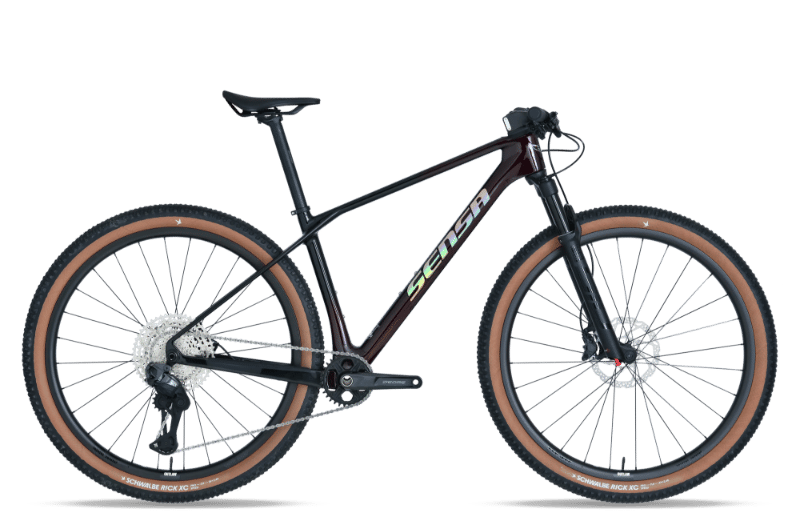

2026 Sensa Fiori XCR geometry
Full frame geometry for the 2026 Sensa Fiori XCR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 409 | 74.3 | 68 | 90 | 578 | 64 | 435 | 1103 | 44 |
| M | 606 | 431 | 74.3 | 68 | 97 | 602 | 64 | 435 | 1128 | 44 |
| L | 615 | 453 | 74.3 | 68 | 106 | 626 | 64 | 435 | 1153 | 44 |
| XL | 634 | 476 | 74.3 | 68 | 127 | 655 | 64 | 435 | 1184 | 44 |
All measurements in millimetres unless marked (°) for angles.
