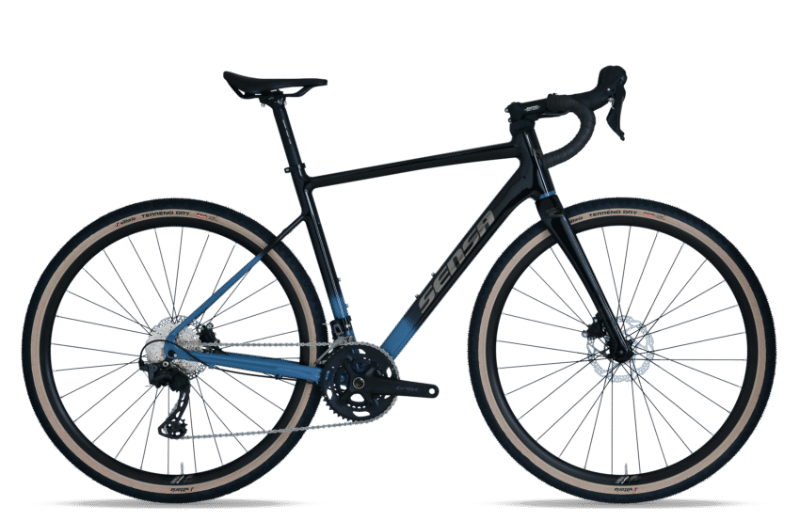

2026 Sensa Romagna Gravel XP geometry
Full frame geometry for the 2026 Sensa Romagna Gravel XP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 567 | 380 | 71.3 | 73.5 | 145 | 548 | 490 | 50 | 395 | 1034.5 |
| 55 | 581.5 | 385 | 71.3 | 73.5 | 160 | 557 | 530 | 50 | 395 | 1044 |
| 58 | 602 | 395 | 71.8 | 73.5 | 180 | 573.5 | 570 | 50 | 395 | 1056 |
| 61 | 621 | 405 | 71.8 | 73.5 | 200 | 589 | 600 | 50 | 395 | 1072 |
All measurements in millimetres unless marked (°) for angles.
