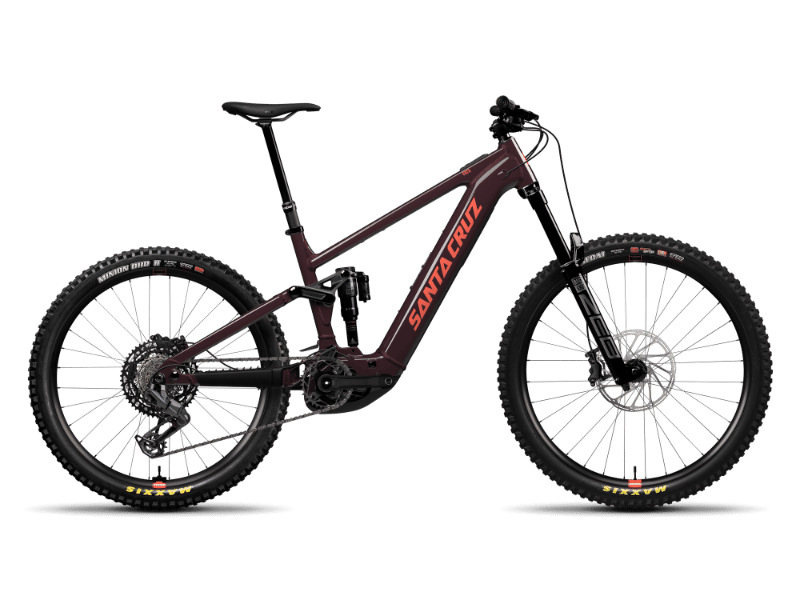

2026 Santa Cruz Vala AL geometry
Full frame geometry for the 2026 Santa Cruz Vala AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 433 | 76.9 | 64.1 | 110 | 578 | 380 | 744 | 771 | 440 | 1211 | 44 |
| M | 634 | 458 | 76.9 | 64.1 | 120 | 606 | 400 | 745 | 800 | 440 | 1241 | 44 |
| L | 643 | 478 | 76.8 | 64.1 | 130 | 628 | 420 | 729 | 825 | 445 | 1270 | 44 |
| XL | 656 | 498 | 76.8 | 64.1 | 145 | 652 | 460 | 732 | 851 | 445 | 1297 | 44 |
All measurements in millimetres unless marked (°) for angles.
