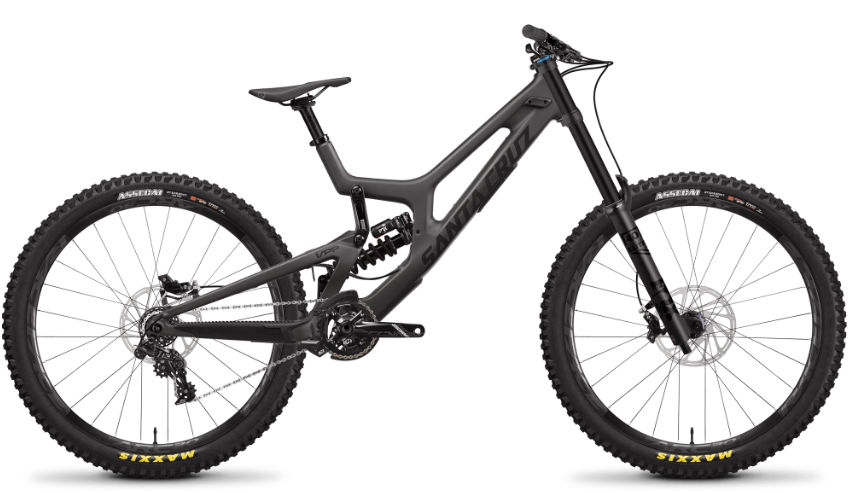

2019 Santa Cruz V10 MK II 27.5 geometry
Full frame geometry for the 2019 Santa Cruz V10 MK II 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| S-Low | 602 | 410 | 63.3 | 100 | 435 | 707 | 430 | 1200 |
| S-High | 603 | 412 | 63.7 | 100 | 435 | 712 | 430 | 1199 |
| M-Low | 610 | 435 | 63.3 | 110 | 445 | 707 | 435 | 1234 |
| M-High | 612 | 437 | 63.7 | 110 | 445 | 712 | 435 | 1233 |
| L-Low | 615 | 460 | 63.3 | 115 | 455 | 707 | 440 | 1266 |
| L-High | 616 | 462 | 63.7 | 115 | 455 | 712 | 440 | 1265 |
All measurements in millimetres unless marked (°) for angles.
