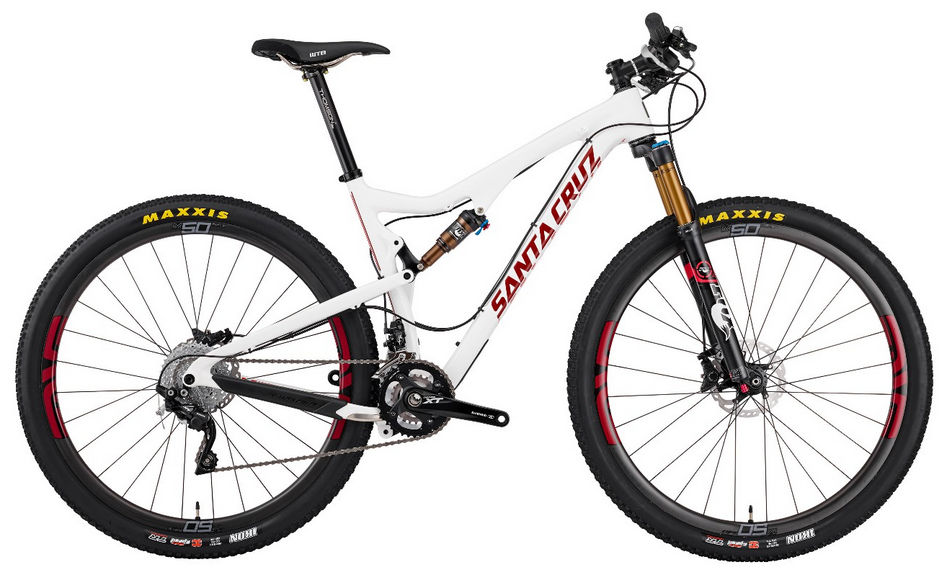

2015 Santa Cruz TallboyC geometry
Full frame geometry for the 2015 Santa Cruz TallboyC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 361 | 72.3 | 70.2 | 90 | — | 419 | 715 | 445 | 1060 |
| L | 620 | 416 | 72.4 | 70.2 | 100 | 613 | 470 | 737 | 445 | 1117 |
| M | 620 | 390 | 72.4 | 70.2 | 100 | 587 | 445 | 725 | 445 | 1092 |
| XL | 630 | 438 | 72.4 | 70.2 | 110 | 638 | 508 | 751 | 445 | 1143 |
| XXL | 639 | 458 | 72.4 | 70.2 | 120 | 661 | 546 | 767 | 445 | 1166 |
All measurements in millimetres unless marked (°) for angles.
