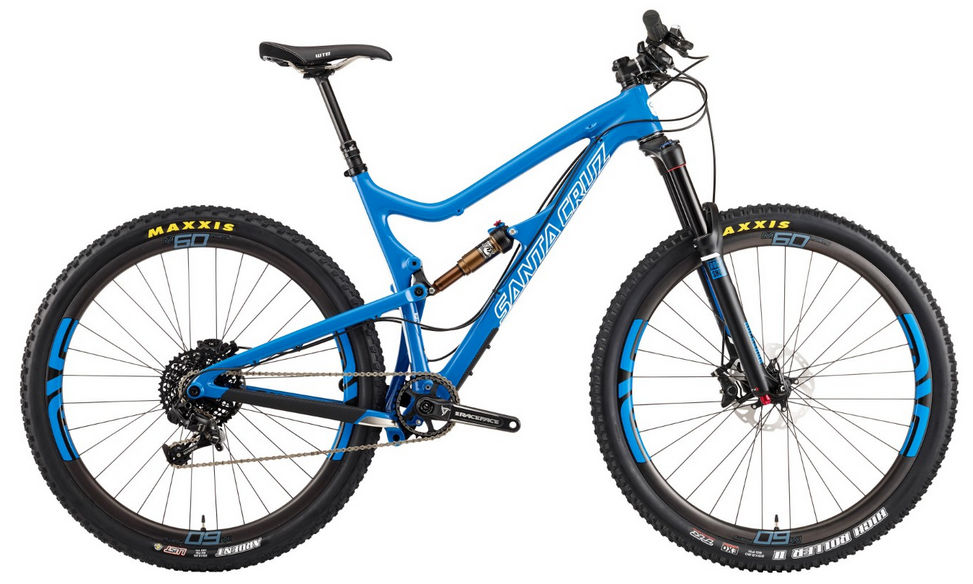

2015 Santa Cruz Tallboy LTC geometry
Full frame geometry for the 2015 Santa Cruz Tallboy LTC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 630 | 414 | 72.6 | 69.4 | 100 | 612 | 495 | 747 | 450 | 1139 |
| M | 630 | 389 | 72.6 | 69.4 | 100 | 586 | 450 | 732 | 450 | 1113 |
| XL | 640 | 437 | 72.6 | 69.4 | 110 | 637 | 533 | 772 | 450 | 1165 |
| XXL | 649 | 457 | 72.6 | 69.4 | 120 | 658 | 559 | 795 | 450 | 1184 |
All measurements in millimetres unless marked (°) for angles.
