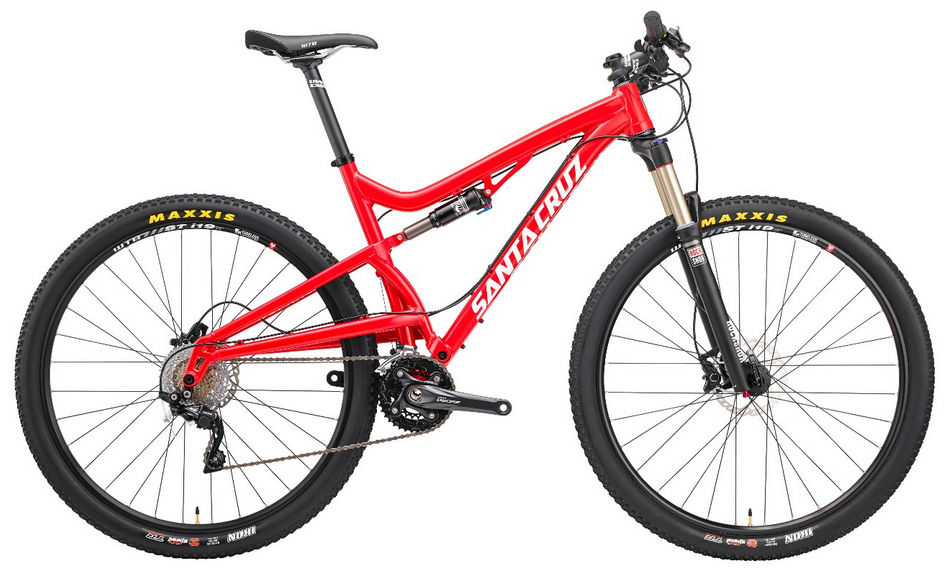

2015 Santa Cruz Superlight geometry
Full frame geometry for the 2015 Santa Cruz Superlight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 387 | 73 | 69 | 90 | 564 | 412 | 691 | 424 | 1071 |
| M | 588 | 410 | 73 | 69 | 100 | 590 | 445 | 695 | 424 | 1097 |
| L | 614 | 421 | 72.7 | 70.2 | 100 | 613 | 495 | 747 | 444 | 1114 |
| XL | 624 | 444 | 72.7 | 70.2 | 110 | 638 | 533 | 757 | 444 | 1140 |
All measurements in millimetres unless marked (°) for angles.
