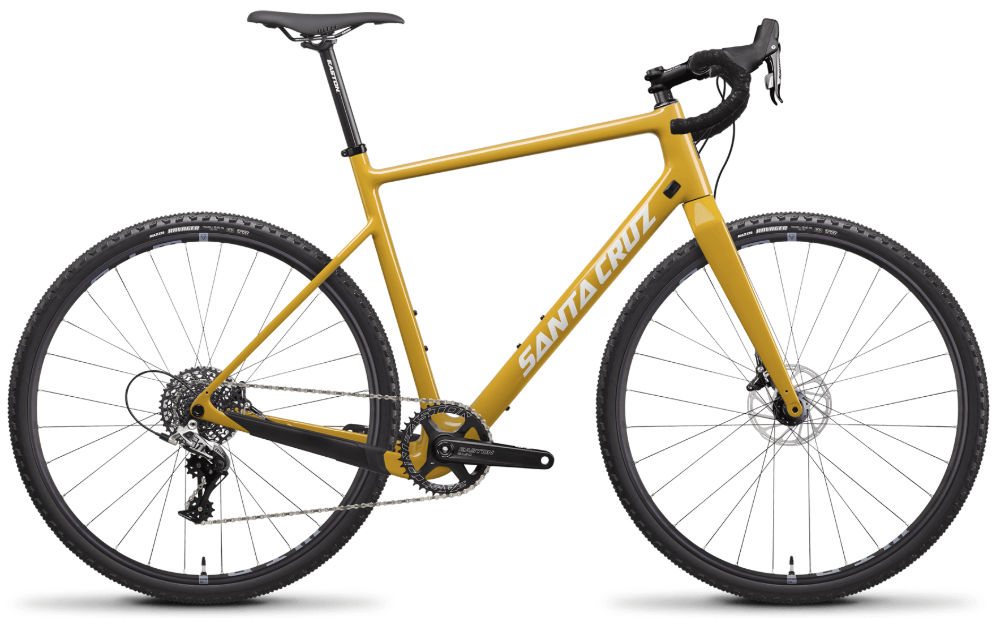

2019 Santa Cruz Stigmata MKII geometry
Full frame geometry for the 2019 Santa Cruz Stigmata MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 555 | 372 | 74.5 | 71 | 130 | 526 | 495 | 754 | 74 | 595 | 425 | 1009 | 50 |
| 54 | 576 | 380 | 74 | 71.5 | 150 | 545 | 520 | 776 | 72 | 600 | 425 | 1015 | 50 |
| 56 | 596 | 388 | 73.5 | 72 | 170 | 565 | 545 | 797 | 72 | 610 | 425 | 1025 | 45 |
| 58 | 609 | 392 | 73.5 | 72 | 185 | 572 | 565 | 816 | 70 | 618 | 425 | 1034 | 45 |
| 60 | 628 | 405 | 73.5 | 72 | 205 | 591 | 590 | 834 | 70 | 637 | 425 | 1053 | 45 |
All measurements in millimetres unless marked (°) for angles.
