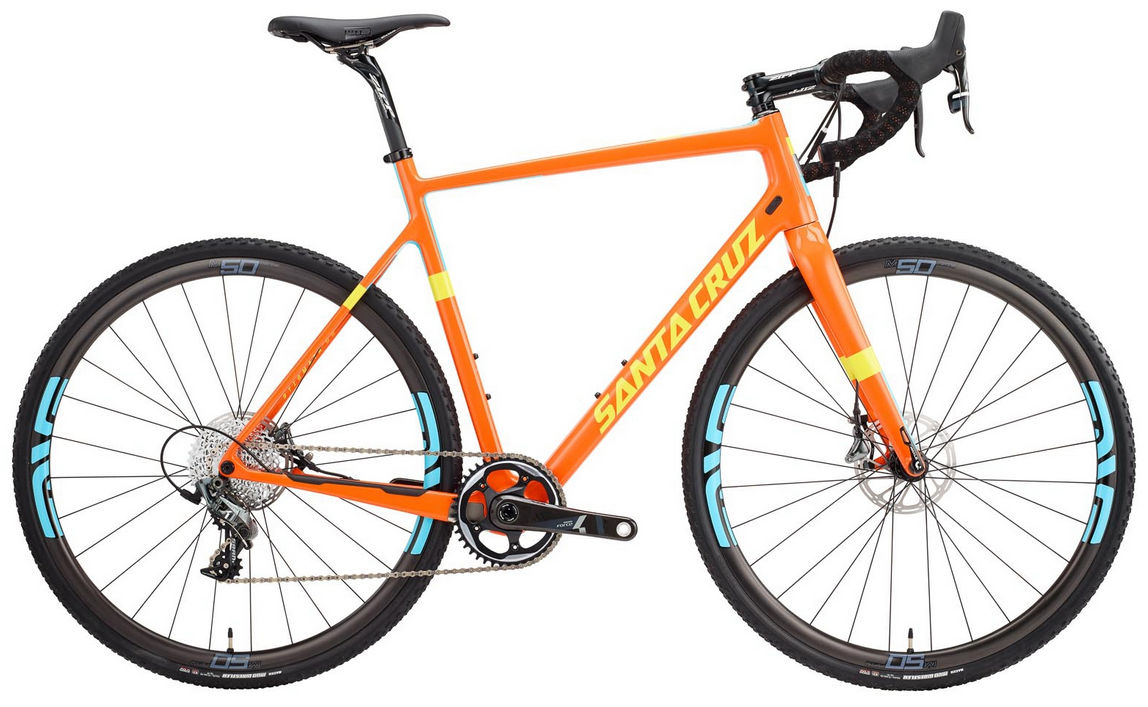

2015 Santa Cruz Stigmata MKI geometry
Full frame geometry for the 2015 Santa Cruz Stigmata MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 545 | 379 | 74.5 | 71 | 125 | 530 | 530 | 770 | 69 | 425 | 1013 | 48 |
| 54 | 566 | 383 | 74 | 71.5 | 145 | 545 | 545 | 786 | 69 | 425 | 1019 | 48 |
| 56 | 582 | 388 | 73.5 | 72 | 160 | 560 | 560 | 794 | 69 | 425 | 1024 | 48 |
| 58 | 598 | 392 | 73 | 72.5 | 175 | 575 | 570 | 802 | 69 | 425 | 1029 | 48 |
| 60 | 613 | 408 | 73 | 72.5 | 190 | 595 | 590 | 819 | 69 | 425 | 1049 | 48 |
All measurements in millimetres unless marked (°) for angles.
