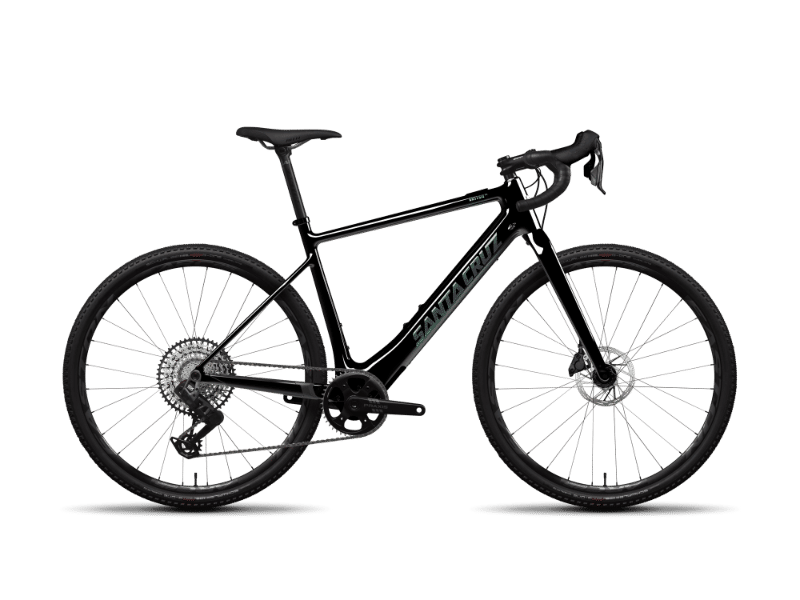

2026 Santa Cruz Skitch geometry
Full frame geometry for the 2026 Santa Cruz Skitch, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 563 | 390 | 74 | 69 | 105 | 551 | 78 | 624 | 430 | 1047 |
| M | 579 | 405 | 74 | 69 | 125 | 571 | 76 | 646 | 430 | 1070 |
| L | 596 | 420 | 74 | 69 | 145 | 591 | 76 | 668 | 430 | 1092 |
| XL | 610 | 435 | 74 | 69 | 160 | 610 | 74 | 689 | 430 | 1112 |
| XXL | 630 | 450 | 74 | 69 | 180 | 630 | 74 | 711 | 430 | 1135 |
All measurements in millimetres unless marked (°) for angles.
