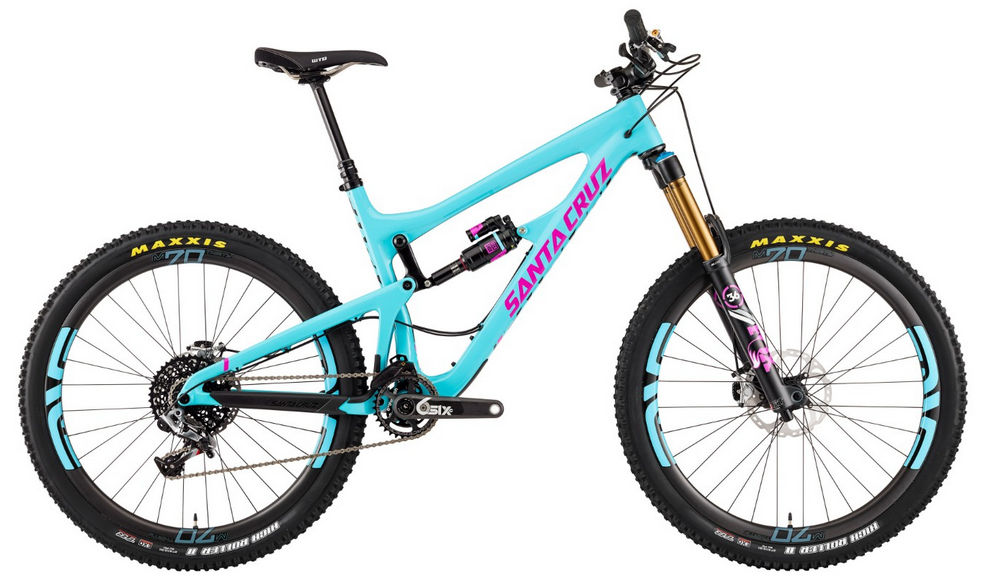

2015 Santa Cruz Nomad MK I geometry
Full frame geometry for the 2015 Santa Cruz Nomad MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 392 | 74.2 | 65 | 90 | 559 | 394 | 727 | 433 | 1143 |
| M | 600 | 415 | 74.2 | 65 | 100 | 584 | 419 | 725 | 433 | 1170 |
| L | 609 | 438 | 74.2 | 65 | 110 | 610 | 457 | 732 | 433 | 1195 |
| XL | 618 | 461 | 74.2 | 65 | 120 | 635 | 495 | 743 | 433 | 1224 |
All measurements in millimetres unless marked (°) for angles.
