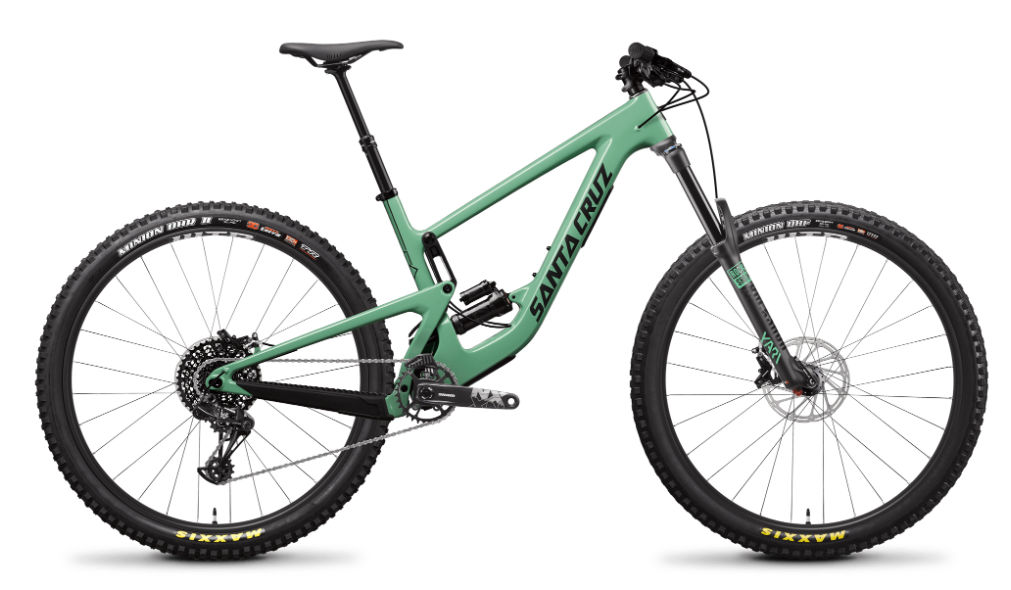

2019 Santa Cruz Megatower geometry
Full frame geometry for the 2019 Santa Cruz Megatower, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 607 | 425 | 76.8 | 65 | 90 | 567 | 380 | 702 | 29 | 743 | 435 | 1178 |
| S-Low | 609 | 422 | 76.5 | 64.7 | 90 | 568 | 380 | 698 | 33 | 743 | 436 | 1179 |
| M-High | 616 | 450 | 76.7 | 65 | 100 | 596 | 405 | 714 | 29 | 772 | 435 | 1207 |
| M-Low | 618 | 447 | 76.4 | 64.7 | 100 | 597 | 405 | 709 | 33 | 772 | 436 | 1208 |
| L-High | 625 | 470 | 76.6 | 65 | 110 | 619 | 430 | 713 | 29 | 796 | 435 | 1231 |
| L-Low | 627 | 467 | 76.3 | 64.7 | 110 | 620 | 430 | 708 | 33 | 796 | 436 | 1232 |
| XL (High) | 643 | 490 | 76.3 | 65 | 130 | 646 | 460 | 711 | 29 | 825 | 435 | 1260 |
| XL (Low) | 645 | 487 | 76 | 64.7 | 130 | 648 | 460 | 705 | 33 | 825 | 436 | 1260 |
| XXL-High | 666 | 515 | 76 | 65 | 155 | 680 | 500 | 708 | 29 | 860 | 435 | 1295 |
| XXL-Low | 668 | 512 | 75.8 | 64.7 | 155 | 682 | 500 | 703 | 33 | 860 | 436 | 1296 |
All measurements in millimetres unless marked (°) for angles.
