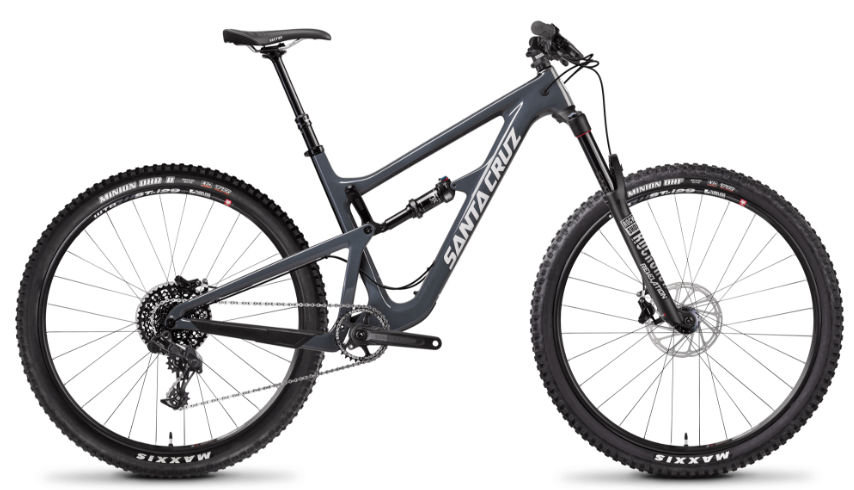

2018 Santa Cruz Hightower LT geometry
Full frame geometry for the 2018 Santa Cruz Hightower LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 398 | 73.7 | 66.4 | 90 | 577 | 390 | 710 | 32 | 706 | 438 | 1146 |
| M | 614 | 423 | 73.7 | 66.4 | 95 | 605 | 420 | 710 | 32 | 733 | 438 | 1173 |
| L | 618 | 443 | 73.7 | 66.4 | 100 | 627 | 450 | 713 | 32 | 755 | 438 | 1195 |
| XL | 628 | 468 | 73.7 | 66.4 | 110 | 653 | 490 | 720 | 32 | 784 | 438 | 1223 |
| XXL | 646 | 498 | 73.7 | 66.4 | 130 | 692 | 510 | 727 | 32 | 822 | 438 | 1261 |
All measurements in millimetres unless marked (°) for angles.
