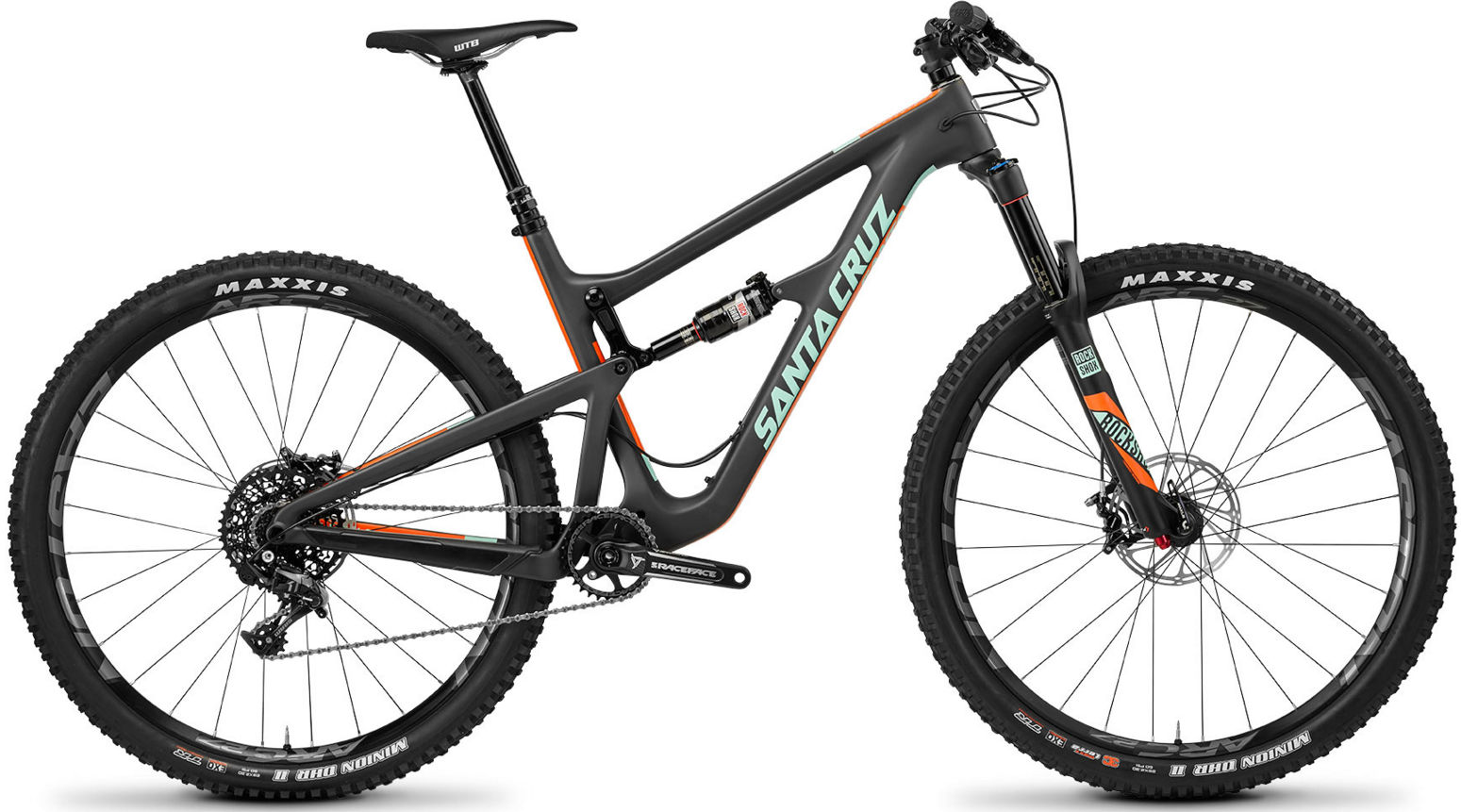

2016 Santa Cruz Hightower 29 MK I geometry
Full frame geometry for the 2016 Santa Cruz Hightower 29 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 604 | 430 | 74.3 | 67 | 90 | 601 | 420 | 710 | 33 | 730 | 435 | 1165 |
| L | 613 | 450 | 74.3 | 67 | 100 | 622 | 450 | 713 | 33 | 752 | 435 | 1187 |
| XL | 623 | 475 | 74.3 | 67 | 110 | 650 | 490 | 720 | 33 | 781 | 435 | 1215 |
All measurements in millimetres unless marked (°) for angles.
