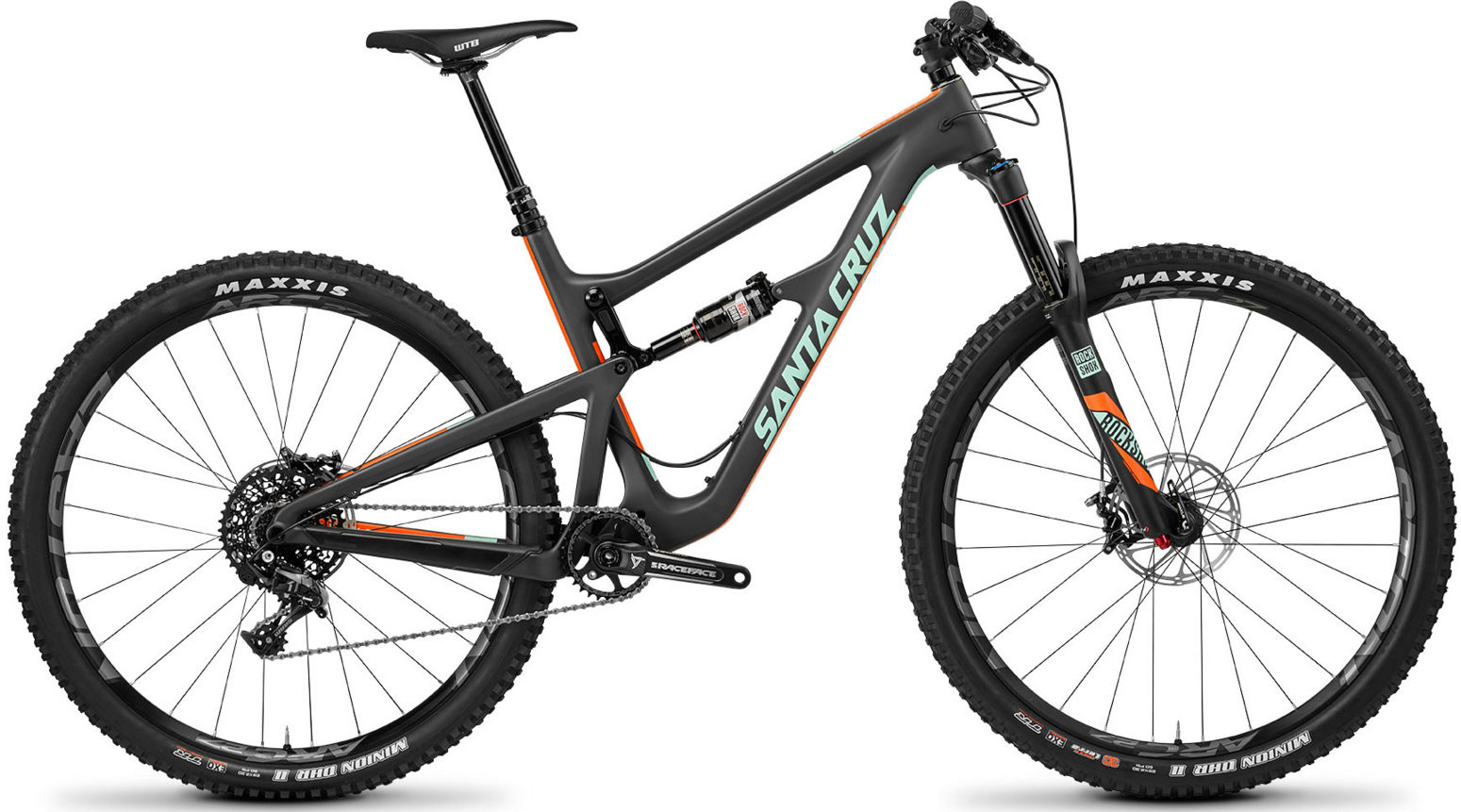

2016 Santa Cruz Hightower 27.5 MK I geometry
Full frame geometry for the 2016 Santa Cruz Hightower 27.5 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 428 | 74.1 | 66.8 | 90 | 602 | 420 | 707 | 27 | 734 | 434 | 1168 |
| L | 615 | 448 | 74.1 | 66.8 | 100 | 623 | 450 | 710 | 27 | 756 | 434 | 1190 |
| XL | 624 | 473 | 74.1 | 66.8 | 110 | 651 | 490 | 717 | 27 | 784 | 434 | 1219 |
All measurements in millimetres unless marked (°) for angles.
