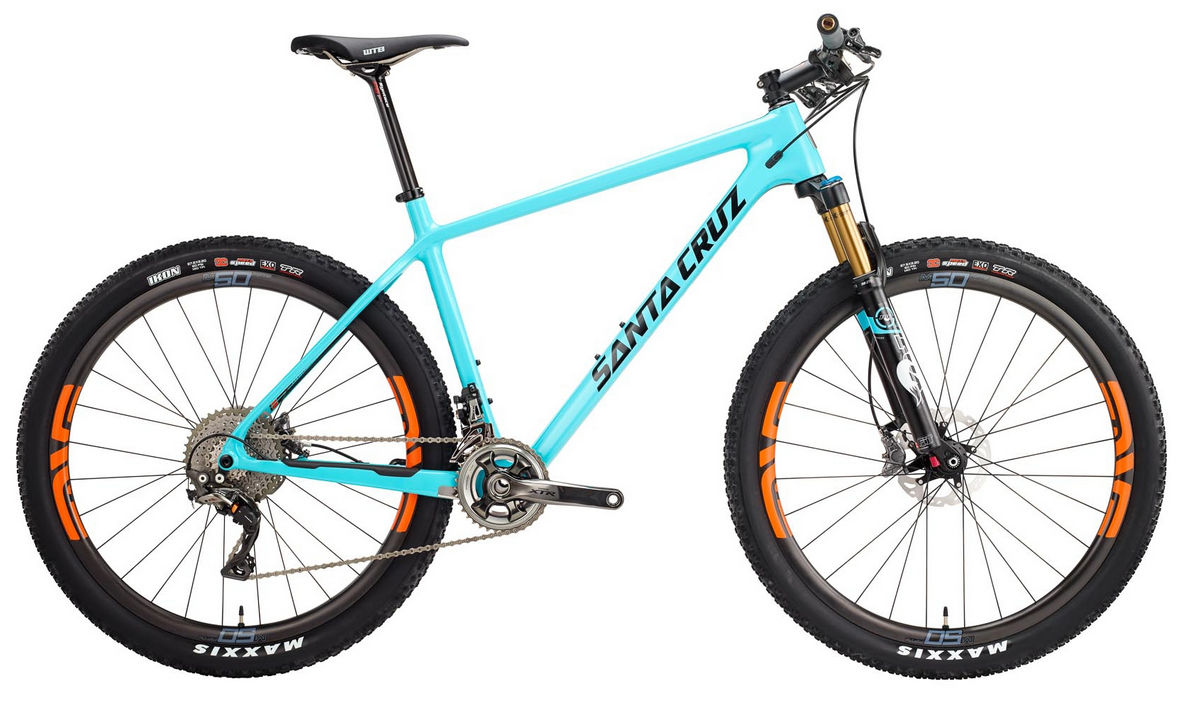

2015 Santa Cruz Highball 27.5 geometry
Full frame geometry for the 2015 Santa Cruz Highball 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 393 | 73 | 69 | 100 | 575 | 406 | 719 | 425 | 1069 |
| M | 585 | 415 | 73 | 69 | 110 | 600 | 432 | 735 | 425 | 1095 |
| L | 595 | 438 | 73 | 69 | 120 | 625 | 483 | 759 | 425 | 1121 |
| XL | 604 | 460 | 73 | 69 | 130 | 651 | 533 | 796 | 425 | 1147 |
All measurements in millimetres unless marked (°) for angles.
