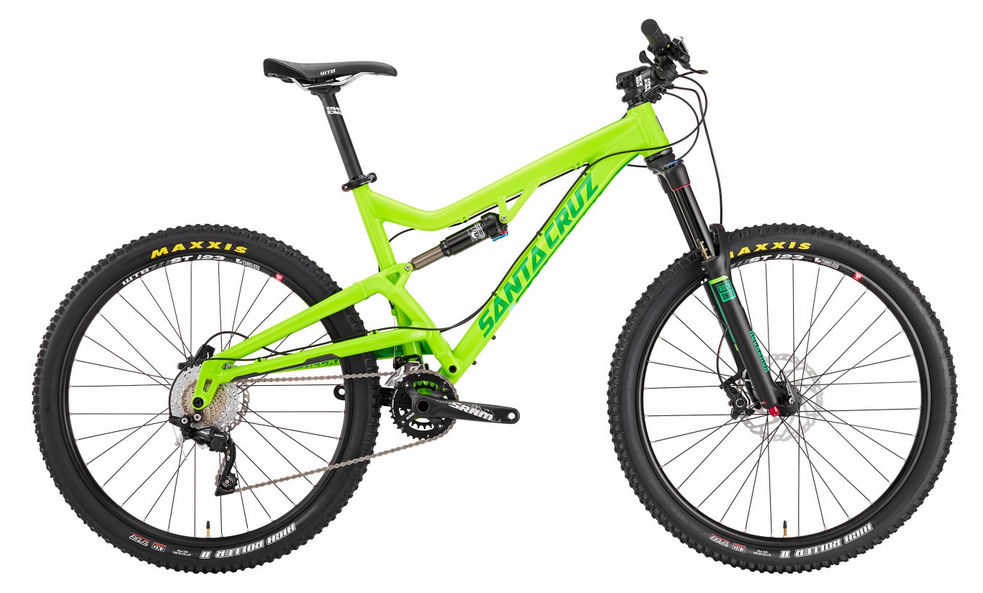

2015 Santa Cruz Heckler geometry
Full frame geometry for the 2015 Santa Cruz Heckler, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 374 | 73 | 67 | 90 | 554 | 407 | 726 | 439 | 1108 |
| L | 596 | 427 | 73 | 67 | 100 | 610 | 470 | 733 | 439 | 1164 |
| M | 596 | 402 | 73 | 67 | 100 | 584 | 432 | 726 | 439 | 1139 |
| XL | 614 | 444 | 73 | 67 | 120 | 635 | 508 | 760 | 439 | 1192 |
All measurements in millimetres unless marked (°) for angles.
