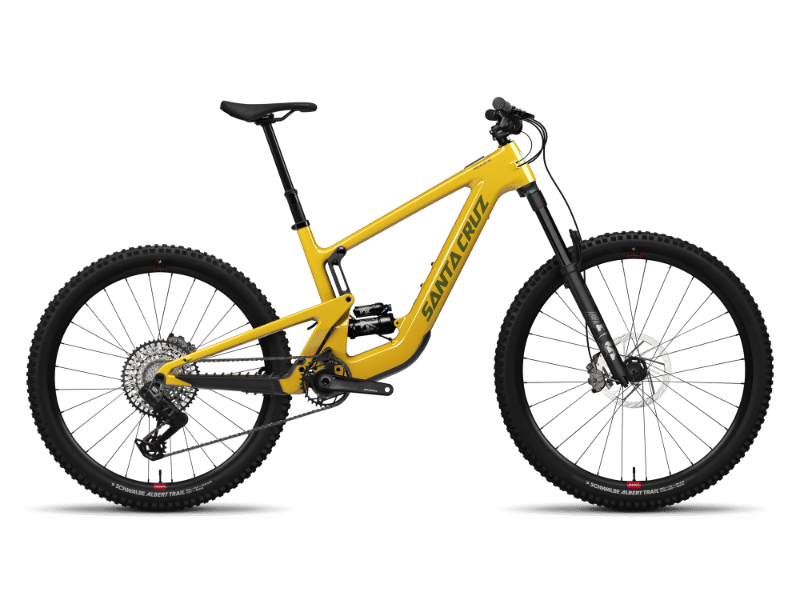

2026 Santa Cruz Heckler SL geometry
Full frame geometry for the 2026 Santa Cruz Heckler SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614.9 | 435 | 76.8 | 64.3 | 100 | 569.2 | 380 | 720.1 | 9.9 | 766.1 | 443 | 1209.1 | 44 |
| M | 624 | 460 | 77.1 | 64.3 | 110 | 602.7 | 405 | 733 | 9.9 | 795.4 | 443 | 1238.4 | 44 |
| L | 633 | 480 | 77.5 | 64.3 | 120 | 620.6 | 430 | 733.4 | 9.9 | 819.7 | 443 | 1262.7 | 44 |
| XL | 651 | 500 | 77.7 | 64.3 | 140 | 641.8 | 460 | 731.7 | 9.9 | 848.4 | 446 | 1294.4 | 44 |
| XXL | 664.5 | 525 | 77.8 | 64.3 | 155 | 669.1 | 500 | 741 | 9.9 | 879.9 | 450 | 1329.9 | 44 |
All measurements in millimetres unless marked (°) for angles.
