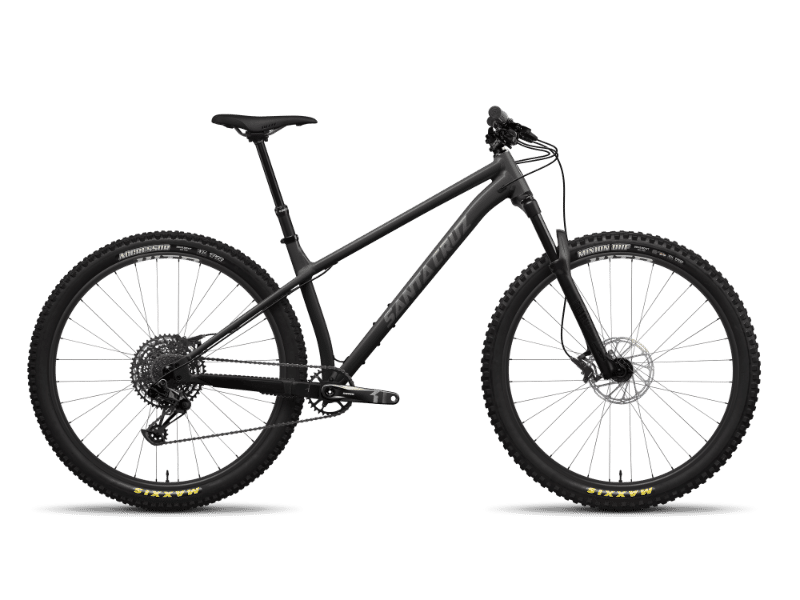

2024 Santa Cruz Chameleon geometry
Full frame geometry for the 2024 Santa Cruz Chameleon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 620.1 | 420 | 74.1 | 65 | 100 | 596.1 | 380 | 682 | 56 | 729.4 | 425 | 1154.4 | 42 |
| M | 629.2 | 445 | 74.3 | 65 | 110 | 621.3 | 405 | 682 | 56 | 758.6 | 425 | 1183.6 | 42 |
| L | 638.2 | 465 | 74.4 | 65 | 120 | 643.4 | 430 | 686 | 56 | 782.8 | 425 | 1207.8 | 42 |
| XL | 647.3 | 490 | 74.6 | 65 | 130 | 668.8 | 460 | 708 | 56 | 812.1 | 425 | 1237.1 | 42 |
All measurements in millimetres unless marked (°) for angles.
