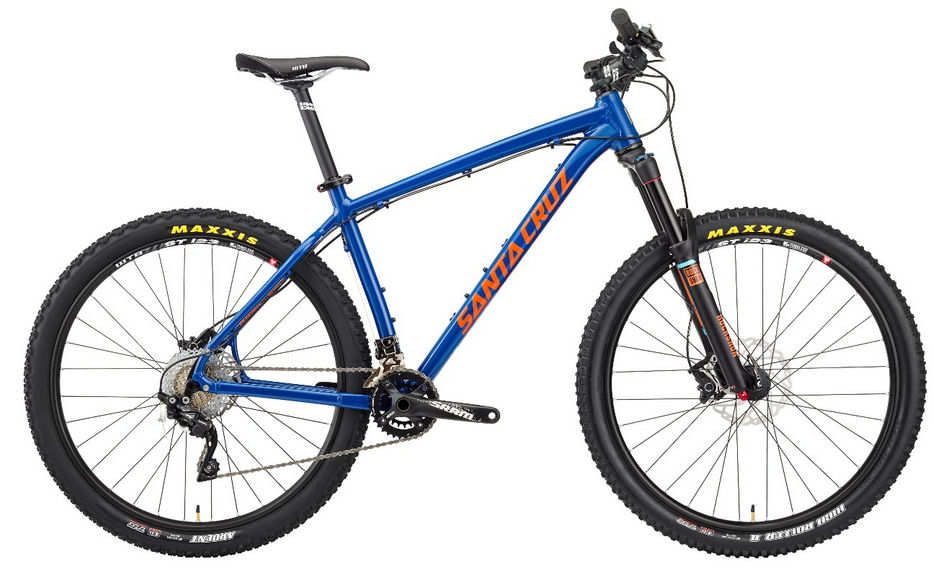

2015 Santa Cruz Chameleon MK I geometry
Full frame geometry for the 2015 Santa Cruz Chameleon MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 365 | 71.3 | 67.3 | 90 | 564 | 406 | 718 | 419 | 1064 |
| M | 603 | 382 | 71.3 | 67.3 | 100 | 584 | 432 | 737 | 419 | 1085 |
| L | 613 | 405 | 71.3 | 67.3 | 110 | 610 | 470 | 767 | 419 | 1112 |
| XL | 623 | 427 | 71.3 | 67.3 | 120 | 635 | 508 | 796 | 419 | 1138 |
All measurements in millimetres unless marked (°) for angles.
