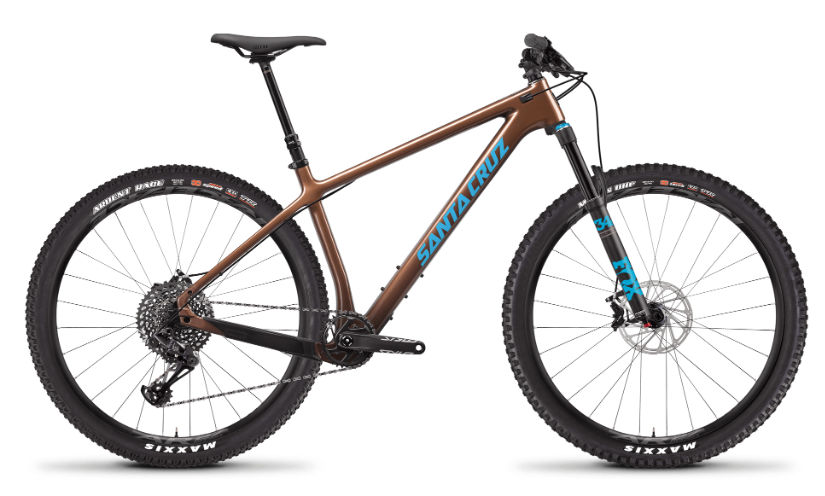

2019 Santa Cruz Chameleon Carbon 27.5 geometry
Full frame geometry for the 2019 Santa Cruz Chameleon Carbon 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 411 | 72.7 | 67.2 | 95 | 596 | 390 | 693 | 47 | 704 | 415 | 1117 |
| M | 618 | 436 | 72.7 | 67.2 | 100 | 623 | 420 | 709 | 47 | 731 | 415 | 1144 |
| L | 628 | 456 | 72.7 | 67.2 | 110 | 646 | 450 | 731 | 47 | 755 | 415 | 1168 |
| XL | 637 | 486 | 72.7 | 67.2 | 120 | 684 | 490 | 746 | 47 | 789 | 415 | 1201 |
All measurements in millimetres unless marked (°) for angles.
