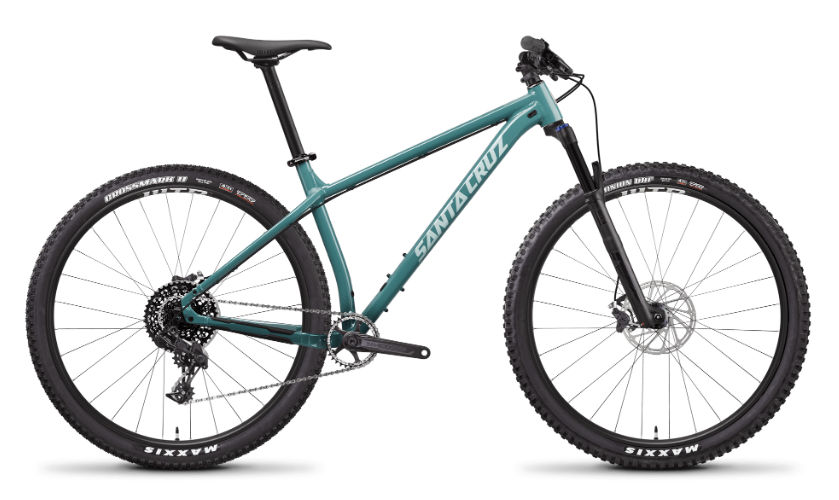

2019 Santa Cruz Chameleon 29 MK II geometry
Full frame geometry for the 2019 Santa Cruz Chameleon 29 MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 617 | 437 | 72.8 | 67.3 | 100 | 626 | 420 | 696 | 55 | 728 | 415 | 1140 |
| S | 617 | 412 | 72.8 | 67.3 | 100 | 601 | 390 | 689 | 55 | 703 | 415 | 1115 |
| L | 625 | 460 | 72.8 | 67.3 | 110 | 649 | 450 | 721 | 55 | 748 | 415 | 1160 |
| XL | 626 | 487 | 72.8 | 67.3 | 120 | 682 | 490 | 740 | 55 | 782 | 415 | 1194 |
All measurements in millimetres unless marked (°) for angles.
