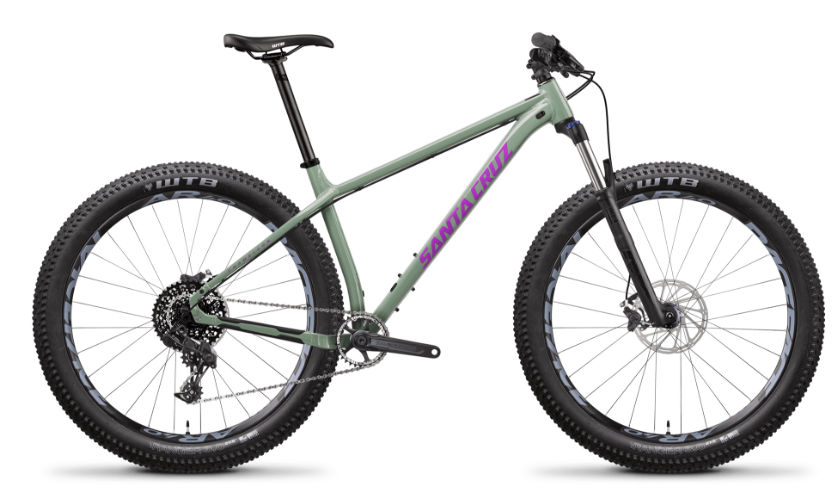

2018 Santa Cruz Chameleon 27.5+ MK I geometry
Full frame geometry for the 2018 Santa Cruz Chameleon 27.5+ MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 615 | 460 | 73 | 67.5 | 100 | 642 | 450 | 721 | 415 | 1160 |
| M | 615 | 440 | 73 | 67.5 | 100 | 621 | 420 | 705 | 415 | 1140 |
| S | 615 | 415 | 73 | 67.5 | 100 | 596 | 390 | 689 | 415 | 1115 |
| XL | 624 | 490 | 73 | 67.5 | 110 | 674 | 490 | 739 | 415 | 1193 |
All measurements in millimetres unless marked (°) for angles.
