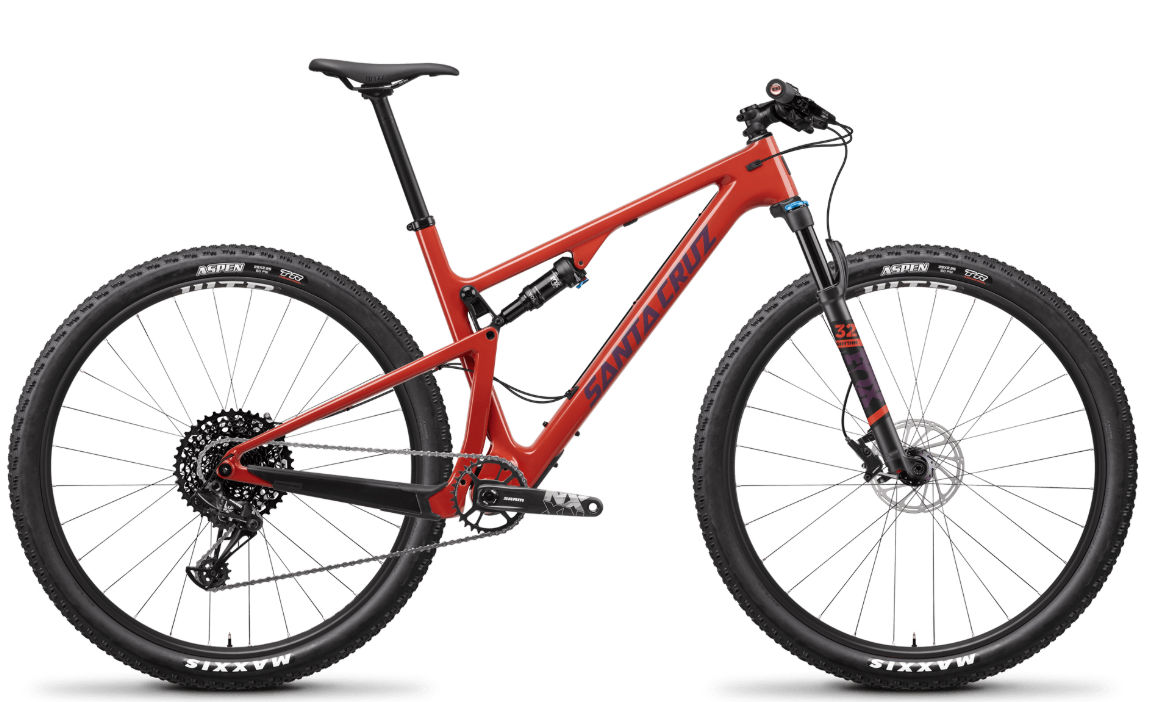

2019 Santa Cruz Blur TR geometry
Full frame geometry for the 2019 Santa Cruz Blur TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 415 | 73.5 | 68.5 | 90 | 576 | 405 | 724 | 38 | 684 | 432 | 1116 |
| M | 592 | 435 | 73.5 | 68.5 | 100 | 599 | 430 | 724 | 39 | 708 | 432 | 1140 |
| L | 601 | 455 | 73.5 | 68.5 | 110 | 623 | 470 | 725 | 39 | 731 | 432 | 1164 |
| XL | 615 | 485 | 73.5 | 68.5 | 125 | 658 | 520 | 732 | 39 | 767 | 432 | 1199 |
All measurements in millimetres unless marked (°) for angles.
