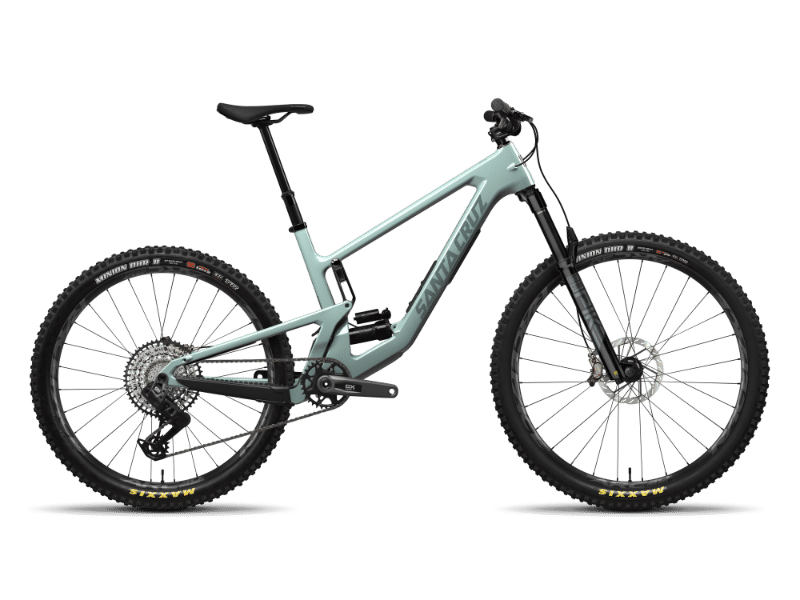

2025 Santa Cruz 5010 geometry
Full frame geometry for the 2025 Santa Cruz 5010, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 599 | 410 | 77.4 | 65.2 | 90 | 544 | 370 | 694 | 35 | 719 | 428 | 1147 | 44 |
| S | 608 | 434 | 77.4 | 65.2 | 100 | 570 | 380 | 703 | 35 | 748 | 430 | 1178 | 44 |
| M | 622 | 459 | 77.4 | 65.2 | 115 | 598 | 405 | 706 | 35 | 779 | 433 | 1212 | 44 |
| L | 631 | 479 | 77.1 | 65.2 | 125 | 624 | 430 | 708 | 35 | 803 | 436 | 1239 | 44 |
| XL | 649 | 499 | 77.3 | 65.2 | 145 | 645 | 460 | 711 | 35 | 832 | 439 | 1271 | 44 |
| XXL | 662 | 524 | 77.3 | 65.1 | 160 | 673 | 500 | 717 | 35 | 863 | 442 | 1305 | 44 |
All measurements in millimetres unless marked (°) for angles.
