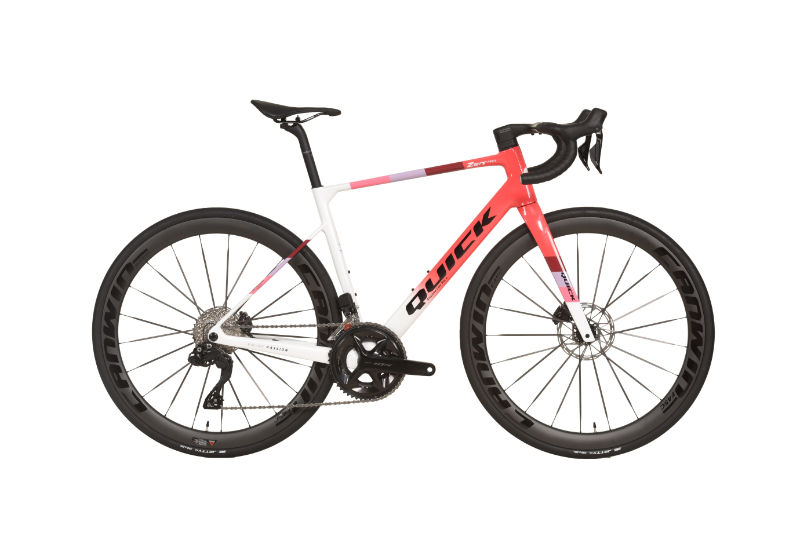

2024 Quick Zeit Pro geometry
Full frame geometry for the 2024 Quick Zeit Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 430 | 532.8 | 370.8 | 74.8 | 70.8 | 120 | 516 | 430 | 698 | 75 | 415 | 45 |
| 460 | 553.1 | 374.2 | 74.3 | 71.7 | 138 | 530 | 460 | 725 | 75 | 415 | 45 |
| 490 | 571.2 | 380.8 | 73.9 | 72 | 157 | 546 | 490 | 760 | 73 | 415 | 45 |
| 520 | 589.3 | 385 | 73.5 | 73 | 172.6 | 560 | 520 | 789 | 73 | 415 | 45 |
| 550 | 610.6 | 392.9 | 73 | 73 | 195 | 580 | 550 | 812 | 73 | 415 | 45 |
All measurements in millimetres unless marked (°) for angles.
