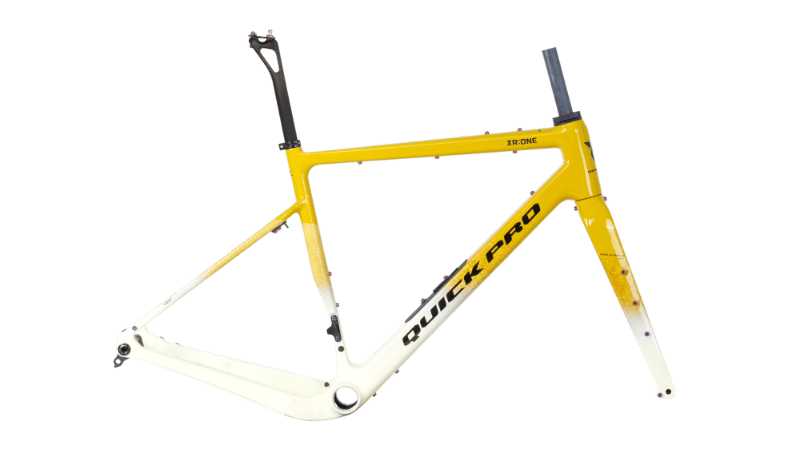

2026 Quick XR:ONE geometry
Full frame geometry for the 2026 Quick XR:ONE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 542 | 375 | 74.5 | 70 | 120 | 525.3 | 475 | 753 | 70 | 435 | 1029.5 | 50 |
| S | 558 | 380 | 73.5 | 70.3 | 135 | 545.3 | 495 | 772 | 70 | 435 | 1037 | 50 |
| M | 573 | 390 | 73.5 | 70.5 | 150 | 560 | 515 | 790 | 70 | 435 | 1051 | 50 |
| L | 596 | 400 | 73.5 | 72 | 170 | 576.5 | 535 | 810 | 70 | 435 | 1053 | 50 |
| XL | 619 | 412 | 73.5 | 72.5 | 190 | 595.4 | 555 | 832 | 70 | 435 | 1067 | 50 |
| XXL | 638 | 426 | 73.5 | 72.5 | 210 | 615 | 585 | 856 | 70 | 435 | 1087 | 50 |
All measurements in millimetres unless marked (°) for angles.
