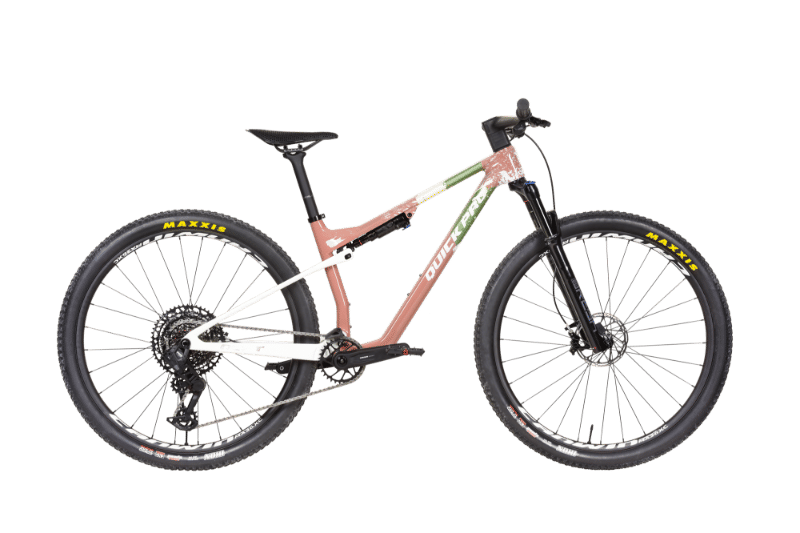

2026 Quick DEFT XC 29 geometry
Full frame geometry for the 2026 Quick DEFT XC 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 425 | 75.5 | 66 | 90 | 579 | 400 | 45 | 435 | 1150 |
| XS | 594 | 400 | 75.5 | 66 | 90 | 553 | 390 | 45 | 435 | 1125 |
| M | 599 | 450 | 75.5 | 66 | 95 | 605 | 410 | 45 | 435 | 1177 |
| L | 613 | 475 | 75.5 | 66 | 110 | 633 | 440 | 45 | 435 | 1213 |
All measurements in millimetres unless marked (°) for angles.
