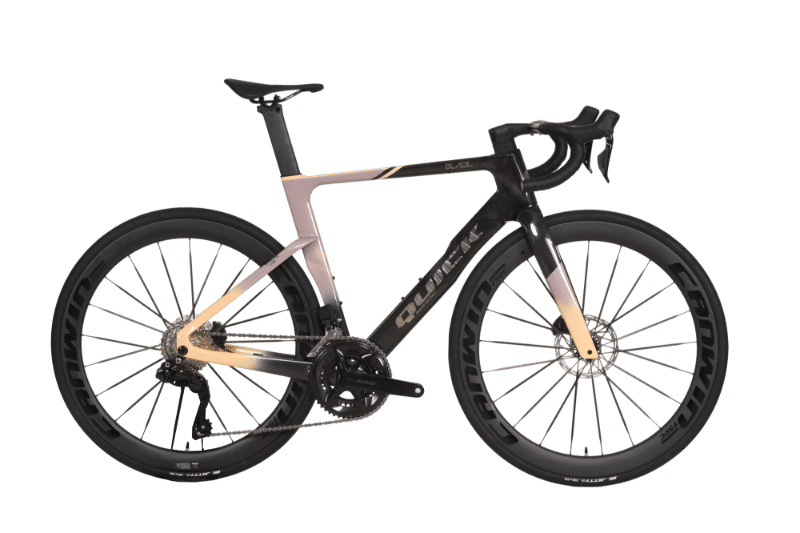

2026 Quick Blade Gen 2 geometry
Full frame geometry for the 2026 Quick Blade Gen 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 360 | 74.3 | 71 | 101.7 | 505 | 456 | 745 | 72 | 410 | 963 | 45 |
| S | 525 | 373 | 74 | 71.5 | 117 | 524 | 486 | 764 | 72 | 410 | 976 | 45 |
| M | 547 | 380 | 73.5 | 72 | 138 | 542 | 514 | 786 | 72 | 410 | 985 | 45 |
| L | 567 | 391 | 73.5 | 72.5 | 157 | 559 | 536 | 806 | 72 | 410 | 998 | 45 |
| XL | 585 | 400 | 73.3 | 72.8 | 175 | 575 | 558 | 824 | 72 | 410 | 1010 | 45 |
| XXL | 602 | 409 | 73 | 73 | 192 | 593 | 576 | 841 | 72 | 410 | 1022 | 45 |
All measurements in millimetres unless marked (°) for angles.
