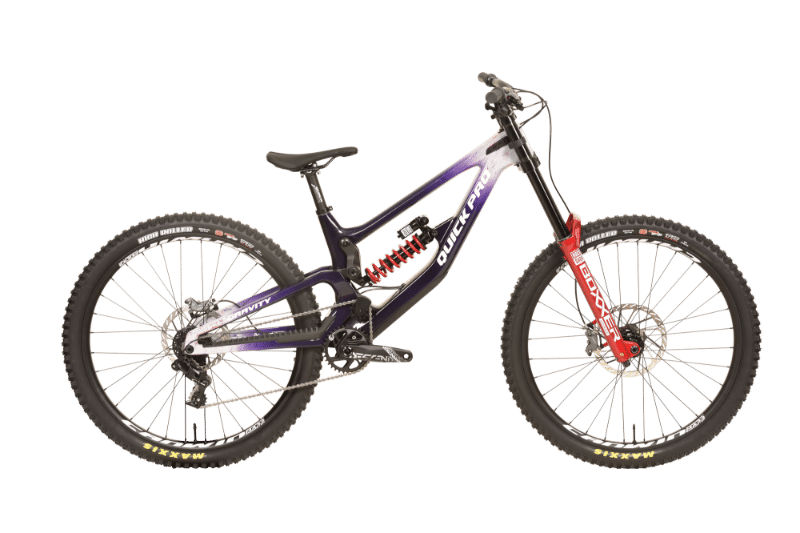

2026 Quick GRAVITY DH 29 geometry
Full frame geometry for the 2026 Quick GRAVITY DH 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 618 | 415 | 76.5 | 63 | 95 | 563 | 400 | 15 | 445 | 1219 | 46 |
| M | 622 | 445 | 76.5 | 63 | 100 | 594 | 400 | 15 | 445 | 1251 | 46 |
| L | 627 | 475 | 76.5 | 63 | 105 | 625 | 400 | 15 | 445 | 1283 | 46 |
All measurements in millimetres unless marked (°) for angles.
