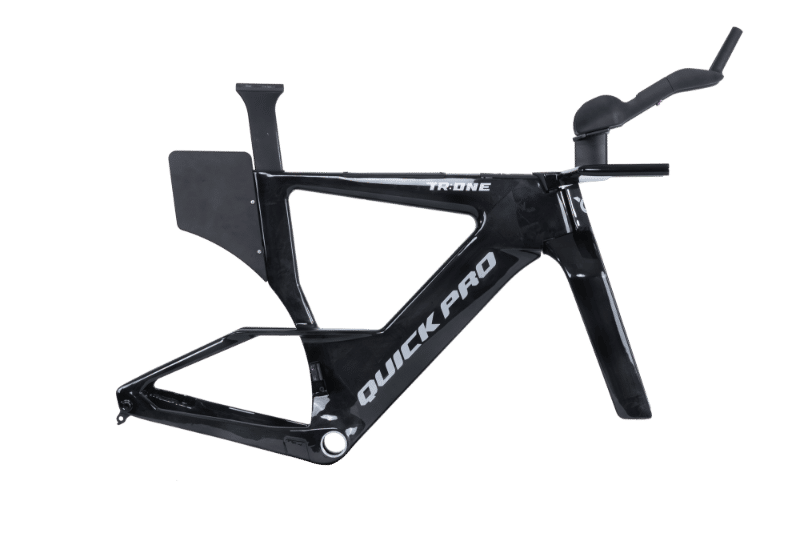

2026 Quick TR:ONE geometry
Full frame geometry for the 2026 Quick TR:ONE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 516 | 374 | 78 | 72.5 | 62 | 484 | 528 | 785 | 78 | 410 | 957 | 40 | 67.5 |
| S | 525 | 395 | 78 | 73 | 72 | 507 | 537 | 794 | 78 | 410 | 976 | 40 | 64.3 |
| M | 540 | 420 | 78 | 73 | 88 | 535 | 557 | 809 | 78 | 410 | 1006 | 40 | 64.3 |
| L | 560 | 443.5 | 78 | 73 | 108.5 | 563 | 572 | 829 | 78 | 410 | 1035 | 40 | 64.3 |
All measurements in millimetres unless marked (°) for angles.
