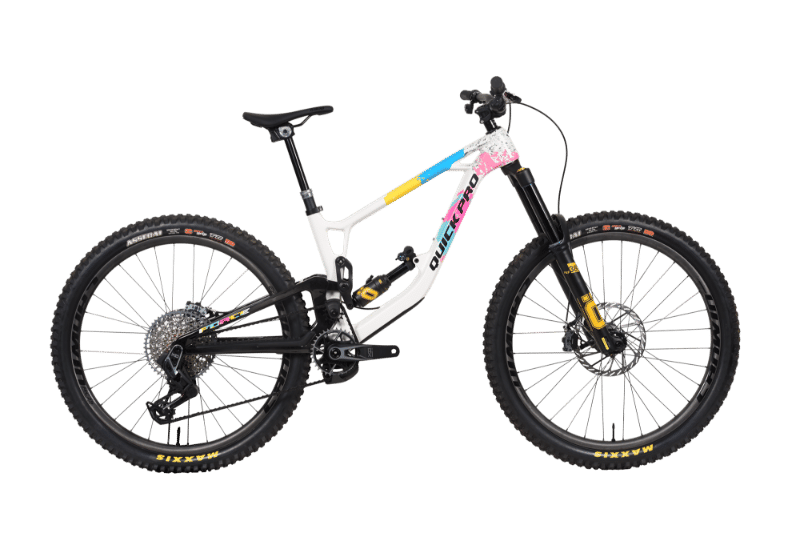

2026 Quick FORCE Enduro 29 geometry
Full frame geometry for the 2026 Quick FORCE Enduro 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 622 | 455 | 77.7 | 64 | 100 | 590 | 410 | 25 | 445 | 1237 | 42 |
| S | 622 | 425 | 77.7 | 64 | 100 | 560 | 380 | 25 | 445 | 1208 | 42 |
| L | 631 | 475 | 78 | 64 | 110 | 609 | 440 | 25 | 445 | 1262 | 42 |
All measurements in millimetres unless marked (°) for angles.
