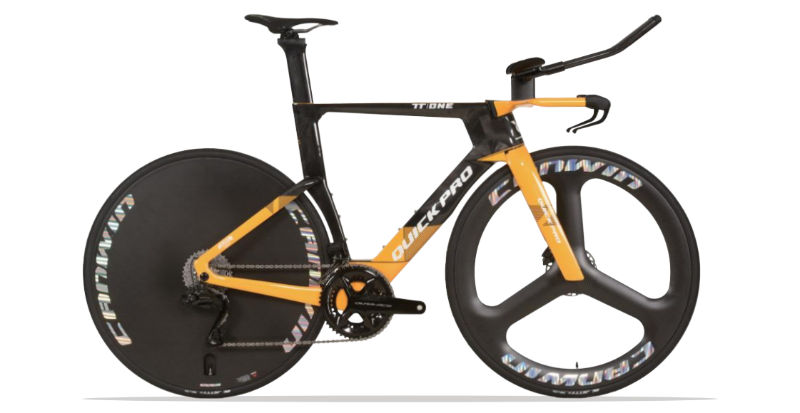

2025 Quick TT:One geometry
Full frame geometry for the 2025 Quick TT:One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 481 | 375 | 75 | 71 | 80 | 504 | 455 | 717 | 75 | 410 | 968 | 45 |
| XS | 486 | 378 | 75 | 71 | 85 | 508 | 498 | 722 | 75 | 410 | 973 | 45 |
| S | 494 | 390 | 75 | 72 | 90 | 522 | 555 | 731 | 75 | 410 | 980 | 45 |
| M | 499 | 405 | 75 | 72 | 95 | 538 | 560 | 733 | 75 | 410 | 996 | 45 |
| L | 503 | 420 | 75 | 72 | 100 | 555 | 565 | 739 | 75 | 410 | 1013 | 45 |
All measurements in millimetres unless marked (°) for angles.
