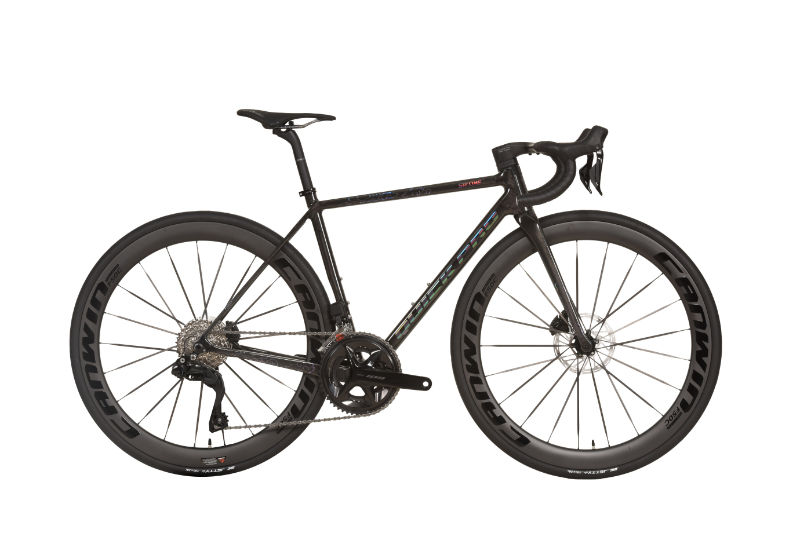

2024 Quick SR One geometry
Full frame geometry for the 2024 Quick SR One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 480 | 10.9 | 370.3 | 74.7 | 71.5 | 110 | 10.1 | 480 | 714.6 | 72 | 410 | 48 |
| 500 | 517.5 | 377.6 | 74.4 | 72 | 115 | 522 | 500 | 725.1 | 72 | 410 | 48 |
| 520 | 526.8 | 383.9 | 74.1 | 72.6 | 125 | 534 | 520 | 749.6 | 69 | 410 | 45 |
| 540 | 542.2 | 388.9 | 73.8 | 72.9 | 140 | 547 | 540 | 768.9 | 69 | 410 | 45 |
| 560 | 557.3 | 394.6 | 73.5 | 73.1 | 155 | 559.6 | 560 | 785.1 | 69 | 410 | 45 |
| 580 | 576.7 | 400.9 | 73.2 | 73.3 | 175 | 575 | 580 | 799.3 | 69 | 410 | 45 |
| 600 | 596.2 | 407.6 | 72.9 | 73.3 | 195 | 591 | 600 | 819.5 | 69 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
