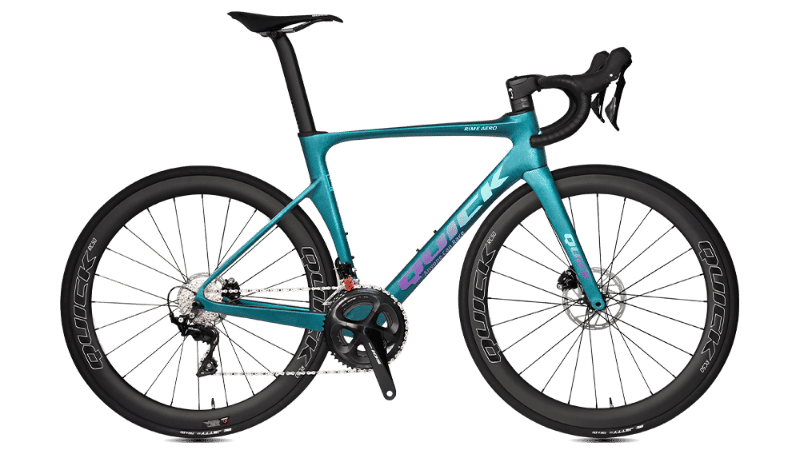

2024 Quick Rime Aero geometry
Full frame geometry for the 2024 Quick Rime Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 493 | 373 | 75 | 71 | 95 | 505 | 430 | 699 | 69 | 410 | 970.7 | 45 |
| XS | 506 | 380 | 75 | 72 | 105 | 515 | 467 | 731 | 69 | 410 | 973.5 | 45 |
| S | 524 | 385 | 74 | 73 | 120 | 536 | 487 | 745 | 69 | 410 | 975.4 | 45 |
| M | 543 | 386 | 73.5 | 73 | 140 | 547 | 507 | 767 | 69 | 410 | 980.2 | 45 |
| L | 564 | 395 | 73.3 | 73.5 | 160 | 565 | 527 | 787 | 69 | 410 | 993 | 45 |
| XL | 593 | 401 | 73 | 73.5 | 190 | 582 | 547 | 808 | 69 | 410 | 1007 | 45 |
All measurements in millimetres unless marked (°) for angles.
