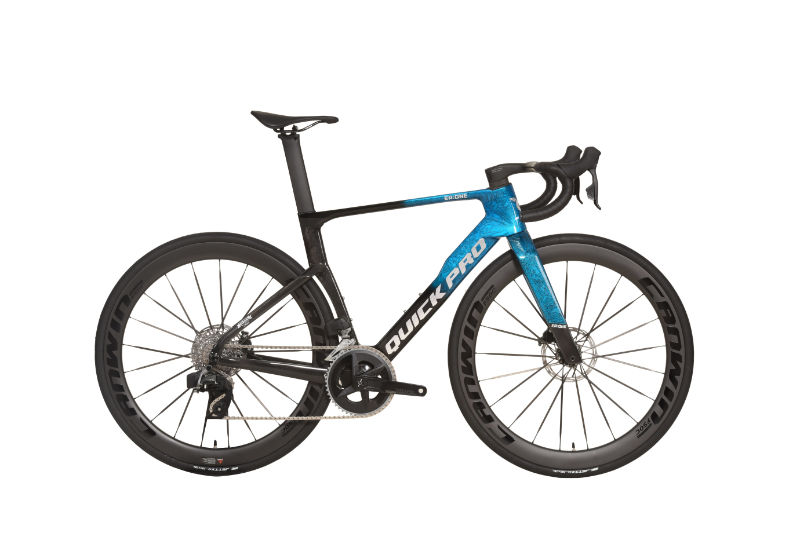

2025 Quick ER One geometry
Full frame geometry for the 2025 Quick ER One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 380 | 75 | 70 | 105 | 515 | 430 | 746 | 70 | 408 | 988 | 45 |
| S | 521 | 381 | 74.5 | 71 | 118 | 525 | 460 | 762 | 70 | 408 | 985 | 45 |
| M | 538 | 386 | 74 | 72 | 132 | 540 | 490 | 779 | 70 | 408 | 987 | 45 |
| L | 556 | 393 | 73.5 | 73 | 148 | 558 | 520 | 797 | 70 | 408 | 991 | 45 |
| XL | 572 | 406 | 73.5 | 73 | 165 | 575 | 550 | 813 | 70 | 408 | 1008 | 45 |
All measurements in millimetres unless marked (°) for angles.
