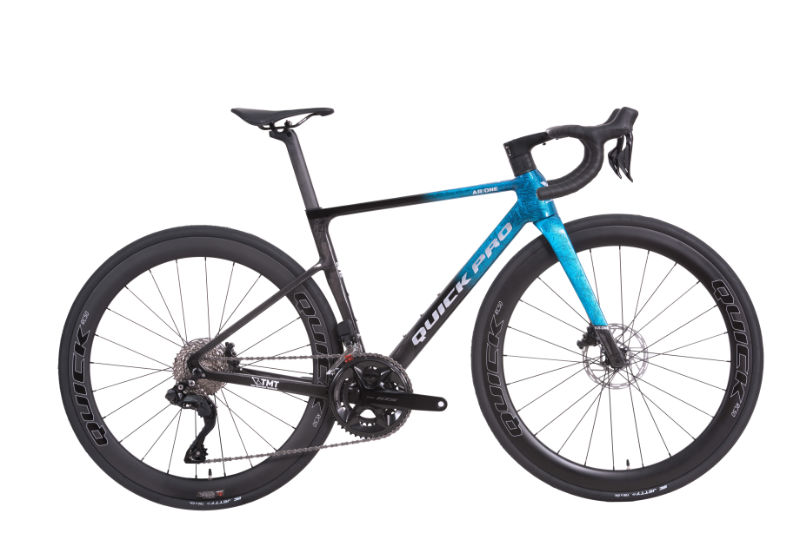

2024 Quick AR One geometry
Full frame geometry for the 2024 Quick AR One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 503.9 | 375.4 | 75 | 70 | 105 | 510 | 430 | 710.5 | 71.6 | 408 | 982 | 45 |
| S | 516.7 | 382.2 | 74.5 | 71 | 115 | 525 | 460 | 736 | 71.6 | 408 | 984.5 | 45 |
| M | 534.6 | 386.7 | 74 | 72 | 130 | 540 | 490 | 761.5 | 71.6 | 408 | 986 | 45 |
| L | 552 | 391.4 | 73.5 | 73 | 145 | 555 | 520 | 787 | 71.6 | 408 | 987 | 45 |
| XL | 566.6 | 402 | 73.5 | 73 | 160 | 570 | 550 | 812.5 | 71.6 | 408 | 1002 | 45 |
All measurements in millimetres unless marked (°) for angles.
