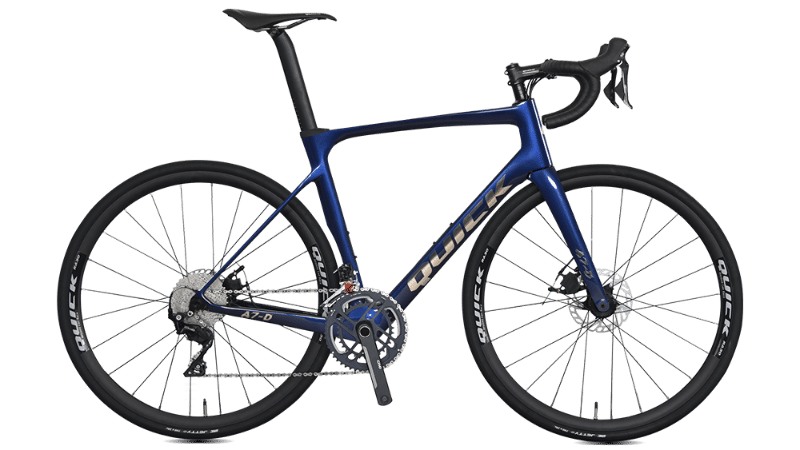

2024 Quick A7-D geometry
Full frame geometry for the 2024 Quick A7-D, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 420 | 508.1 | 363.9 | 75 | 71 | 110 | 499.7 | 420 | 697 | 69 | 408 | 965 | 45 |
| 450 | 528.8 | 373.3 | 75 | 71.5 | 130 | 515 | 450 | 728 | 69 | 408 | 976.9 | 45 |
| 480 | 550.4 | 378.2 | 74 | 72.5 | 150 | 536 | 480 | 758 | 69 | 408 | 979.5 | 45 |
| 510 | 571.2 | 378.8 | 73.5 | 72.9 | 170 | 548 | 510 | 781 | 69 | 408 | 981.7 | 45 |
| 540 | 596.9 | 385.3 | 73.3 | 73.4 | 195 | 565 | 540 | 808 | 69 | 408 | 991 | 45 |
| 570 | 620.9 | 397.2 | 73 | 73.5 | 220 | 587 | 570 | 839 | 69 | 408 | 1009.9 | 45 |
All measurements in millimetres unless marked (°) for angles.
