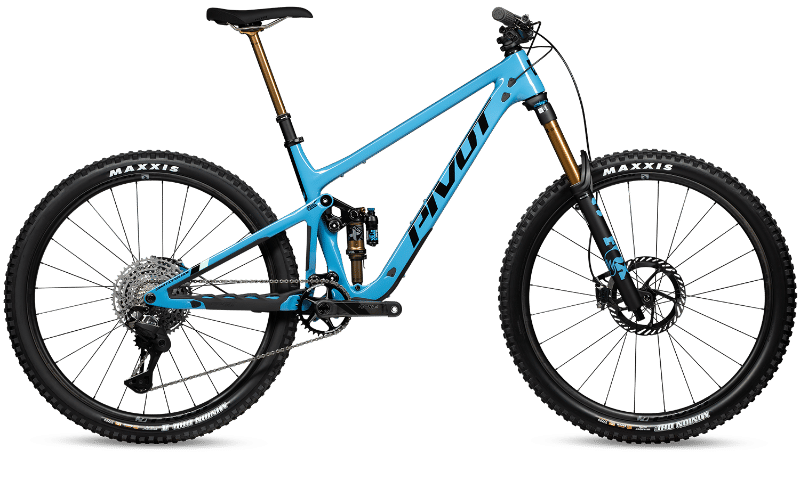

2026 Pivot Switchblade geometry
Full frame geometry for the 2026 Pivot Switchblade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 614 | 410 | 76 | 65.2 | 85 | 569 | 343 | 651 | 29 | 431 | 1157 | 44 |
| SM | 627 | 440 | 76 | 65.2 | 100 | 606 | 368 | 667 | 29 | 431 | 1193 | 44 |
| MD | 638 | 465 | 76 | 65.2 | 112 | 634 | 394 | 690 | 29 | 431 | 1223 | 44 |
| LG | 643 | 480 | 76 | 65.2 | 117 | 650 | 432 | 701 | 29 | 432 | 1242 | 44 |
| XL | 655 | 500 | 76.5 | 65.2 | 130 | 663 | 470 | 702 | 29 | 436 | 1271 | 44 |
All measurements in millimetres unless marked (°) for angles.
