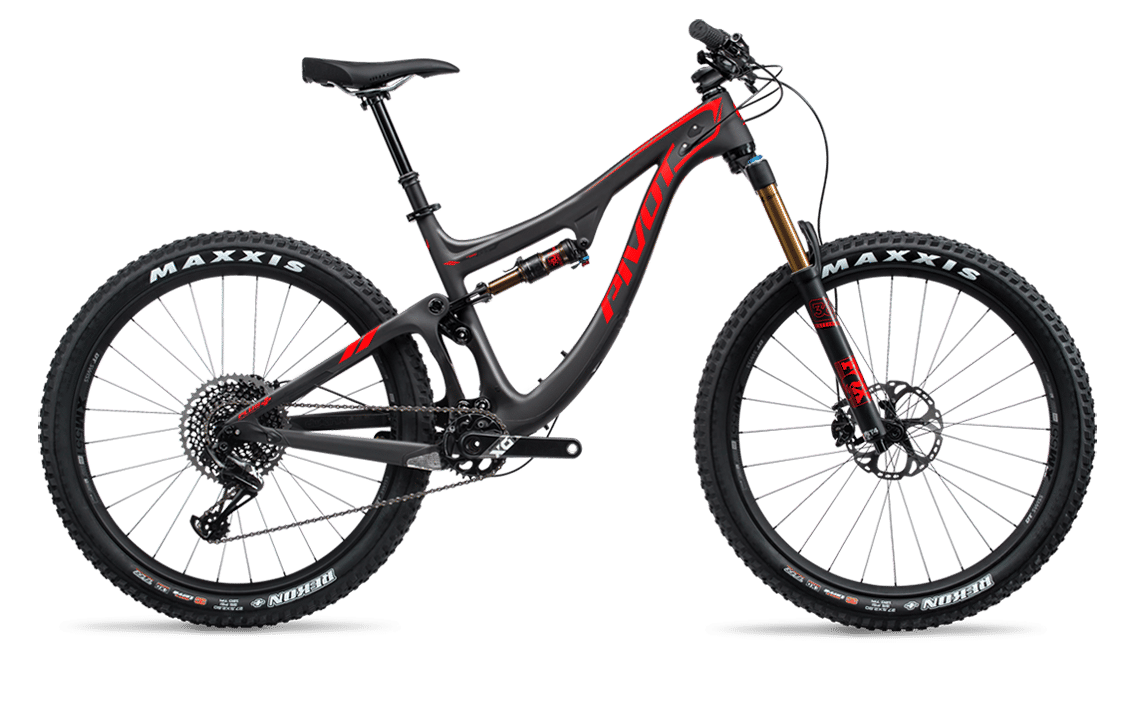

2017 Pivot Switchblade geometry
Full frame geometry for the 2017 Pivot Switchblade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 600 | 390 | 74.8 | 67.2 | 85 | 555 | 368 | 683 | 428 | 1111 |
| S | 605 | 410 | 74.5 | 67.2 | 90 | 582 | 406 | 705 | 428 | 1133 |
| M | 615 | 440 | 74.2 | 67.2 | 102 | 615 | 426 | 709 | 428 | 1167 |
| L | 620 | 460 | 74.2 | 67.2 | 108 | 635 | 457 | 711 | 428 | 1190 |
| XL | 630 | 485 | 74.2 | 67.2 | 120 | 660 | 495 | 732 | 428 | 1220 |
All measurements in millimetres unless marked (°) for angles.
