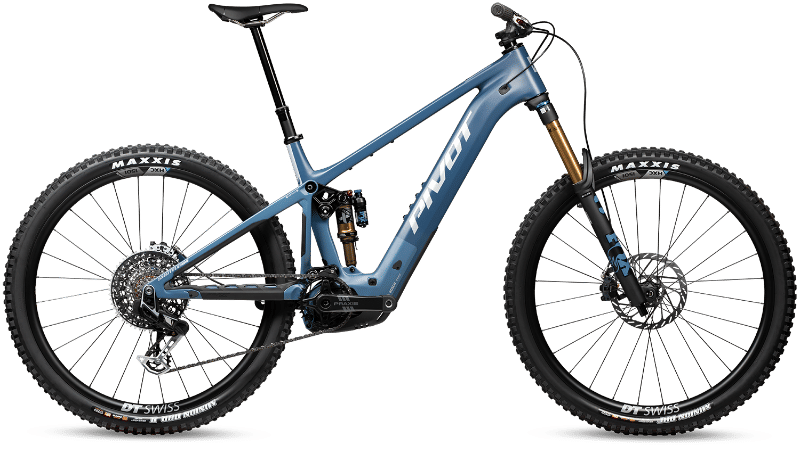

2026 Pivot Shuttle AM geometry
Full frame geometry for the 2026 Pivot Shuttle AM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 632 | 431 | 76.5 | 64.1 | 110 | 599 | 378 | 715 | 29 | 444 | 1217 | 44 |
| MD | 642 | 461 | 76.5 | 64.1 | 120 | 631 | 399 | 715 | 29 | 444 | 1251 | 44 |
| LG | 651 | 476 | 76.5 | 64.1 | 130 | 649 | 432 | 715 | 29 | 444 | 1270 | 44 |
| XL | 660 | 496 | 76.5 | 64.1 | 140 | 671 | 470 | 715 | 29 | 444 | 1295 | 44 |
All measurements in millimetres unless marked (°) for angles.
