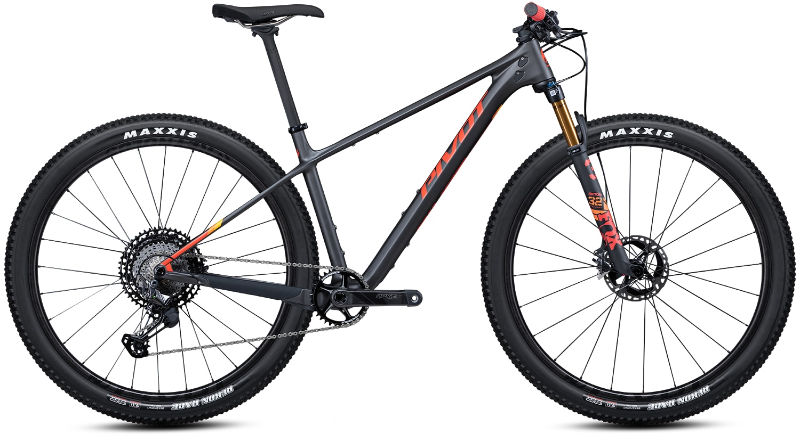

2026 Pivot Les SL geometry
Full frame geometry for the 2026 Pivot Les SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 594 | 400 | 75 | 68 | 85 | 565 | 355 | 607 | 64 | 429 | 1086 | 44 |
| MD | 601 | 445 | 74.5 | 68.5 | 100 | 620 | 420 | 684 | 64 | 429 | 1132 | 44 |
| SM | 601 | 420 | 74.5 | 68.5 | 90 | 592 | 395 | 649 | 64 | 429 | 1103 | 44 |
| LG | 620 | 460 | 74.5 | 68.5 | 110 | 638 | 470 | 711 | 64 | 429 | 1150 | 44 |
| XL | 638 | 485 | 74.5 | 68.5 | 130 | 668 | 510 | 748 | 64 | 429 | 1183 | 44 |
All measurements in millimetres unless marked (°) for angles.
