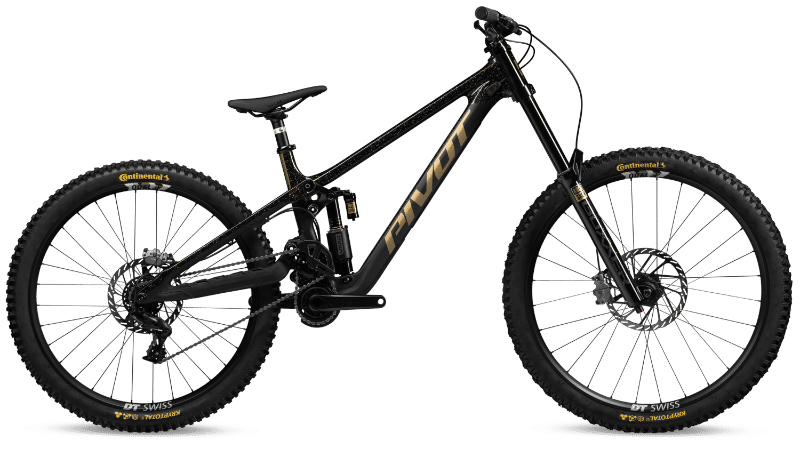

2026 Pivot Phoenix geometry
Full frame geometry for the 2026 Pivot Phoenix, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 635 | 435 | 77.3 | 62.5 | 106 | 578 | 410 | 697 | 8.5 | 443 | 1253 |
| S2 | 635 | 460 | 77.3 | 62.5 | 106 | 603 | 410 | 702 | 8.5 | 443 | 1278 |
| S3 | 635 | 480 | 77.3 | 62.5 | 106 | 623 | 410 | 702 | 8.5 | 443 | 1298 |
| S4 | 635 | 515 | 77.3 | 62.5 | 106 | 658 | 410 | 702 | 8.5 | 443 | 1333 |
All measurements in millimetres unless marked (°) for angles.
