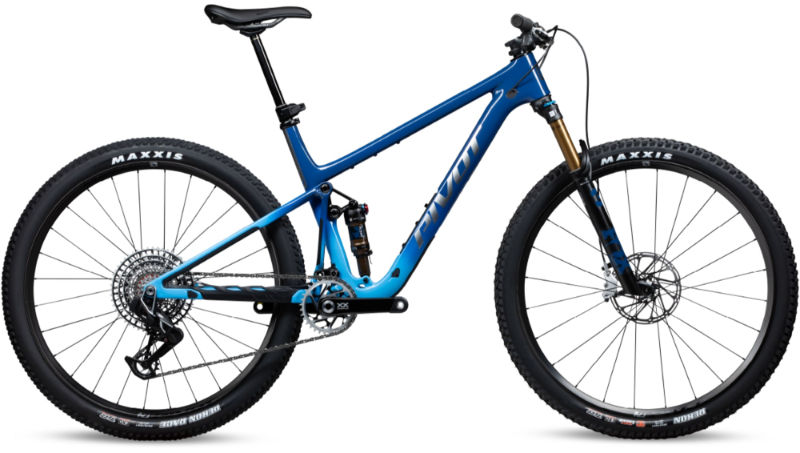

2026 Pivot Mach 4 SL geometry
Full frame geometry for the 2026 Pivot Mach 4 SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 583 | 410 | 75 | 66 | 85 | 574 | 355 | 641 | 38 | 432 | 1131 |
| SM | 590 | 425 | 75 | 66 | 92 | 591 | 394 | 655 | 38 | 432 | 1149 |
| MD | 602 | 450 | 75 | 66 | 105 | 619 | 420 | 687 | 38 | 432 | 1179 |
| LG | 606 | 470 | 75 | 66 | 110 | 640 | 460 | 686 | 38 | 432 | 1201 |
| XL | 629 | 495 | 75 | 66 | 135 | 672 | 505 | 699 | 38 | 432 | 1236 |
All measurements in millimetres unless marked (°) for angles.
