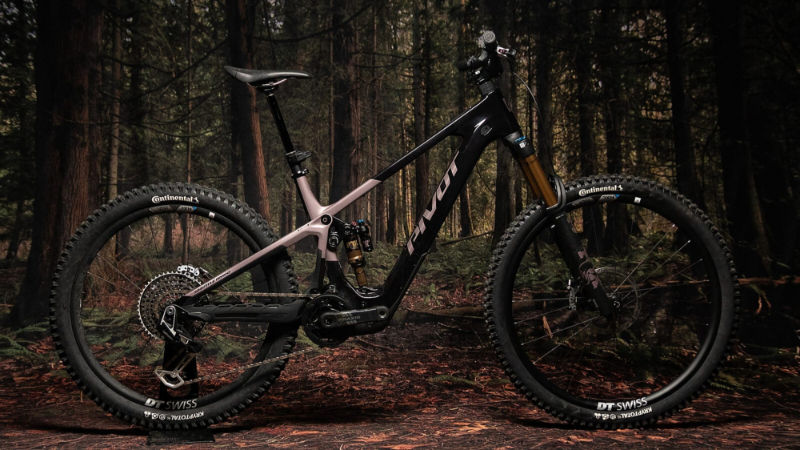

2026 Pivot Shuttle AMP'd geometry
Full frame geometry for the 2026 Pivot Shuttle AMP'd, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 616.3 | 416 | 76.1 | 63.3 | 95 | 575.7 | 343 | 640 | 23 | 443 | 1189 |
| SM | 636 | 431 | 76.1 | 63.3 | 110 | 605.5 | 378 | 658 | 23 | 443 | 1218.6 |
| MD | 645.3 | 456 | 76.1 | 63.3 | 120 | 632.9 | 398.7 | 666 | 23 | 443 | 1247.9 |
| LG | 654.5 | 471 | 76.1 | 63.3 | 130 | 650.3 | 431.8 | 666 | 23 | 443 | 1267.2 |
| XL | 663.8 | 491 | 76.1 | 63.4 | 140 | 672.7 | 470 | 677 | 23 | 443 | 1291.5 |
All measurements in millimetres unless marked (°) for angles.
