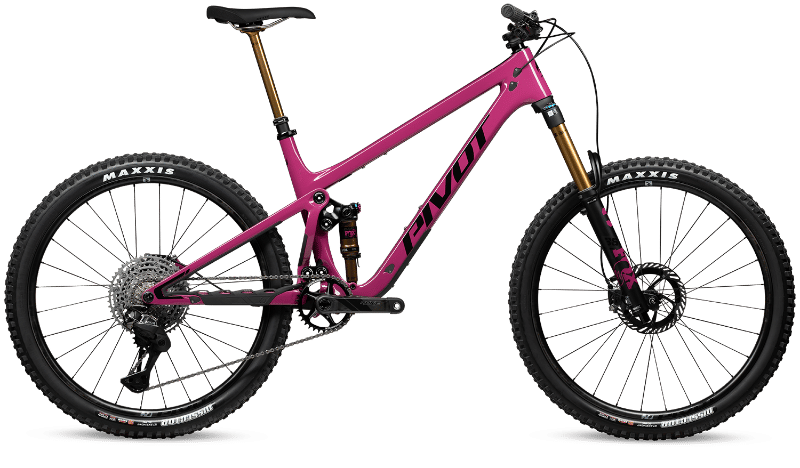

2026 Pivot Shadowcat geometry
Full frame geometry for the 2026 Pivot Shadowcat, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 582 | 410 | 76 | 65.8 | 85 | 569 | 343 | 624 | 17 | 430 | 1142 | 44 |
| SM | 605 | 430 | 76 | 65.8 | 110 | 595 | 368 | 638 | 17 | 430 | 1172 | 44 |
| MD | 614 | 460 | 76 | 65.8 | 120 | 627 | 394 | 657 | 17 | 430 | 1206 | 44 |
| LG | 623 | 480 | 76 | 65.8 | 130 | 650 | 432 | 671 | 17 | 430 | 1230 | 44 |
All measurements in millimetres unless marked (°) for angles.
