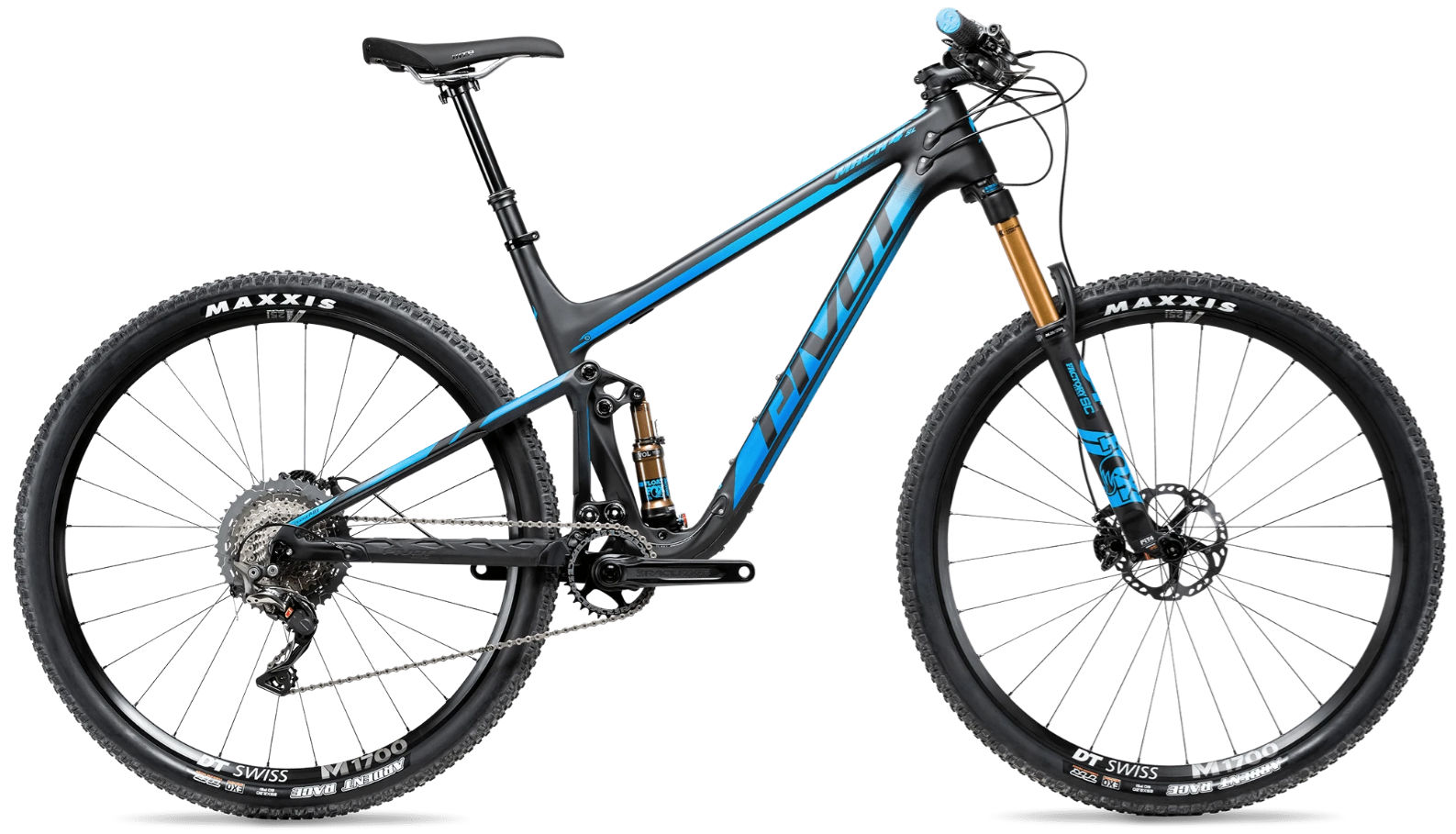

2019 Pivot Mach 4 SL geometry
Full frame geometry for the 2019 Pivot Mach 4 SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS-100 | 580 | 405 | 74.5 | 68.5 | 85 | 571 | 356 | 613 | 431 | 1093 |
| XS-120 | 589 | 392 | 73.5 | 67.5 | 85 | 575 | 356 | 623 | 431 | 1103 |
| S-100 | 590 | 415 | 74.5 | 68.5 | 95 | 584 | 394 | 652 | 431 | 1106 |
| S-120 | 599 | 402 | 73.5 | 67.5 | 95 | 588 | 394 | 664 | 431 | 1116 |
| M-100 | 602 | 440 | 74.5 | 68.5 | 108 | 613 | 419 | 684 | 431 | 1136 |
| M-120 | 611 | 427 | 73.5 | 67.5 | 108 | 616 | 419 | 696 | 431 | 1146 |
| L-100 | 612 | 460 | 74.5 | 68.5 | 119 | 636 | 457 | 687 | 431 | 1160 |
| L-120 | 622 | 447 | 73.5 | 67.5 | 119 | 640 | 457 | 699 | 431 | 1170 |
| XL-100 | 631 | 485 | 74.5 | 68.5 | 140 | 666 | 502 | 711 | 431 | 1193 |
| XL-120 | 641 | 472 | 73.5 | 67.5 | 140 | 671 | 502 | 722 | 431 | 1203 |
All measurements in millimetres unless marked (°) for angles.
