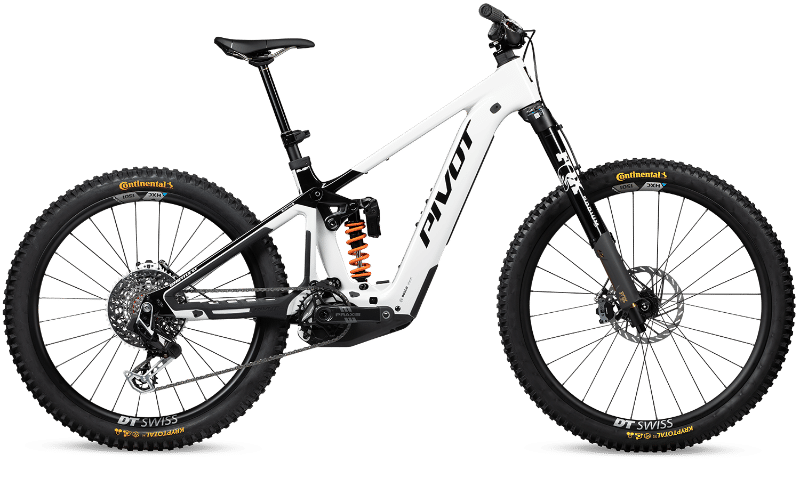

2026 Pivot Shuttle LT geometry
Full frame geometry for the 2026 Pivot Shuttle LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 645 | 434 | 75.7 | 63.2 | 110 | 607 | 378 | 678 | 22 | 443 | 1232 |
| MD | 655 | 459 | 75.7 | 63.2 | 120 | 634 | 399 | 678 | 22 | 443 | 1261 |
| LG | 664 | 474 | 75.7 | 63.2 | 130 | 651 | 432 | 693 | 22 | 443 | 1280 |
| XL | 673 | 494 | 75.7 | 63.2 | 140 | 674 | 470 | 709 | 22 | 443 | 1305 |
All measurements in millimetres unless marked (°) for angles.
